Attributes
| Part Number | FS0306-12-SS |
|---|---|
| Is Series Page | 0 |
Description

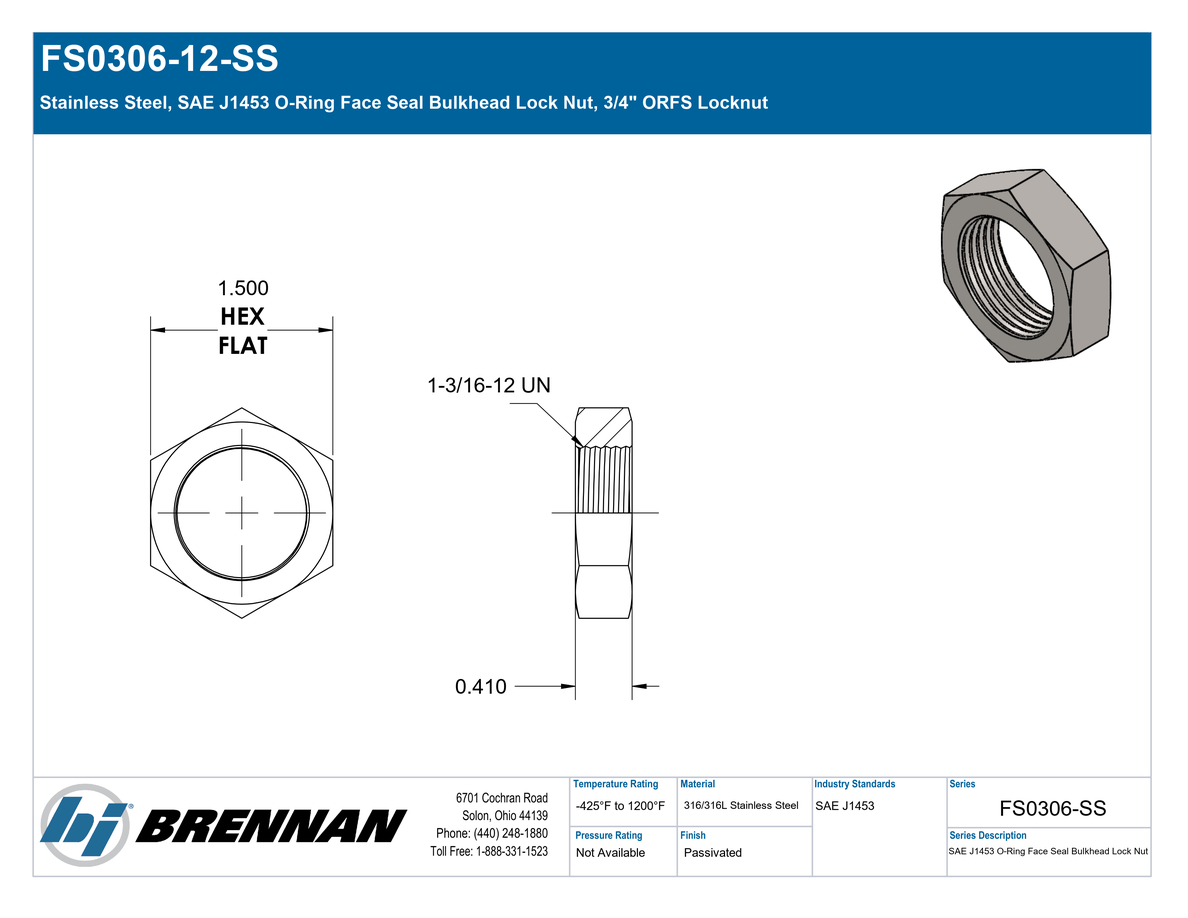

Stainless Steel, SAE J1453 O-Ring Face Seal Bulkhead Lock Nut, 3/4" ORFS Locknut
Specifications
| Connection Details | {"Connection Type":"ORFS Locknut","Tube OD":"3/4\"","Thread Type":"1-3/16-12 UN","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Lock Nut","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.10 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Aeroquip Part Number":"259-FF9768-12","Parker TFD Part Number":"12 WLNL-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | ORFS Bulkhead Lock Nut |
| Technical Series Configuration | SAE J1453 ORFS Bulkhead Tube Lock Nut |
| Side 1 Connection Type | ORFS Locknut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
