Attributes
| Part Number | N2408-08-B |
|---|---|
| Is Series Page | 0 |
Description

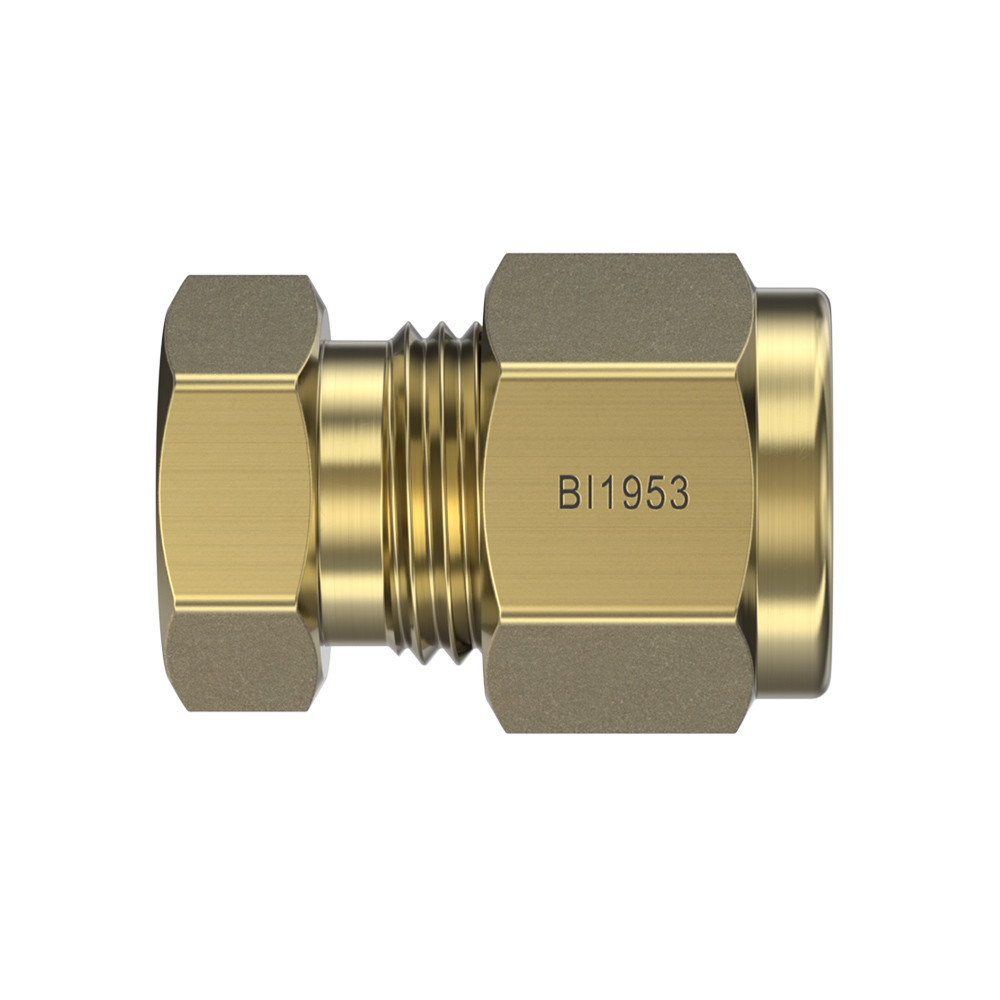

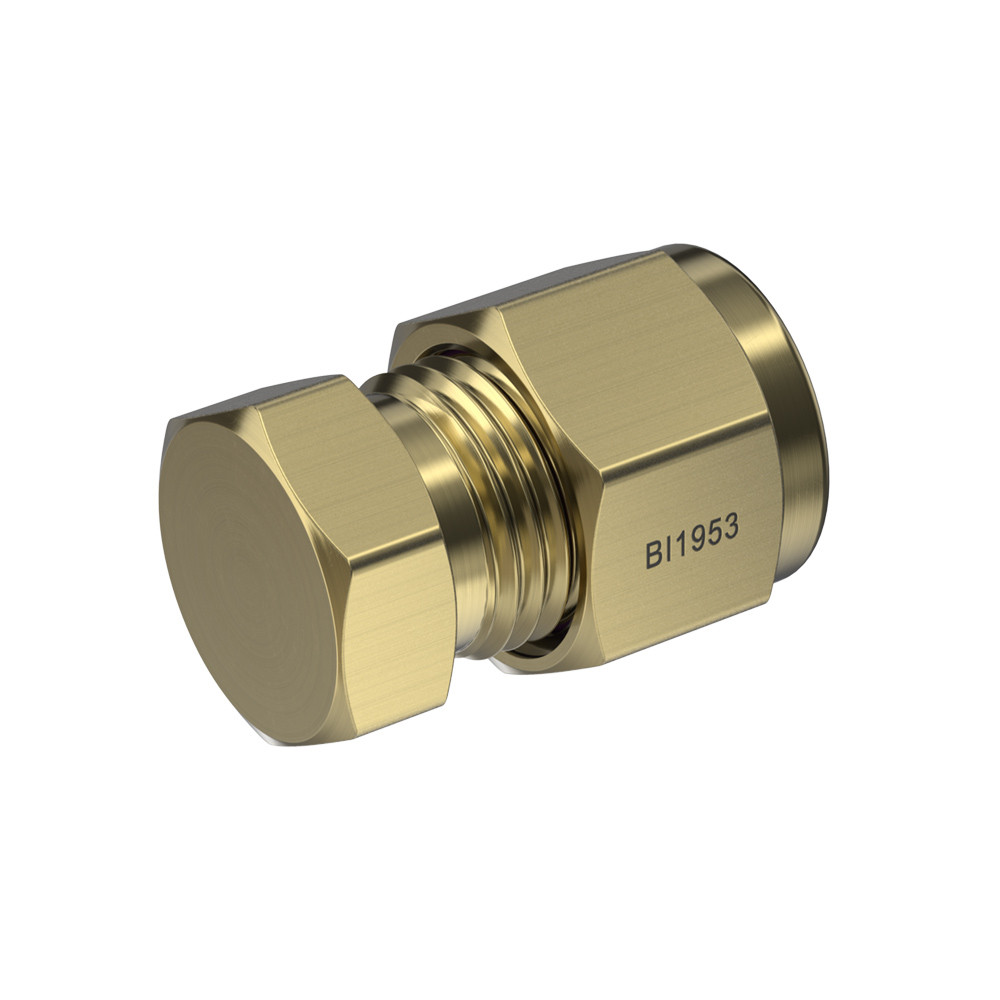

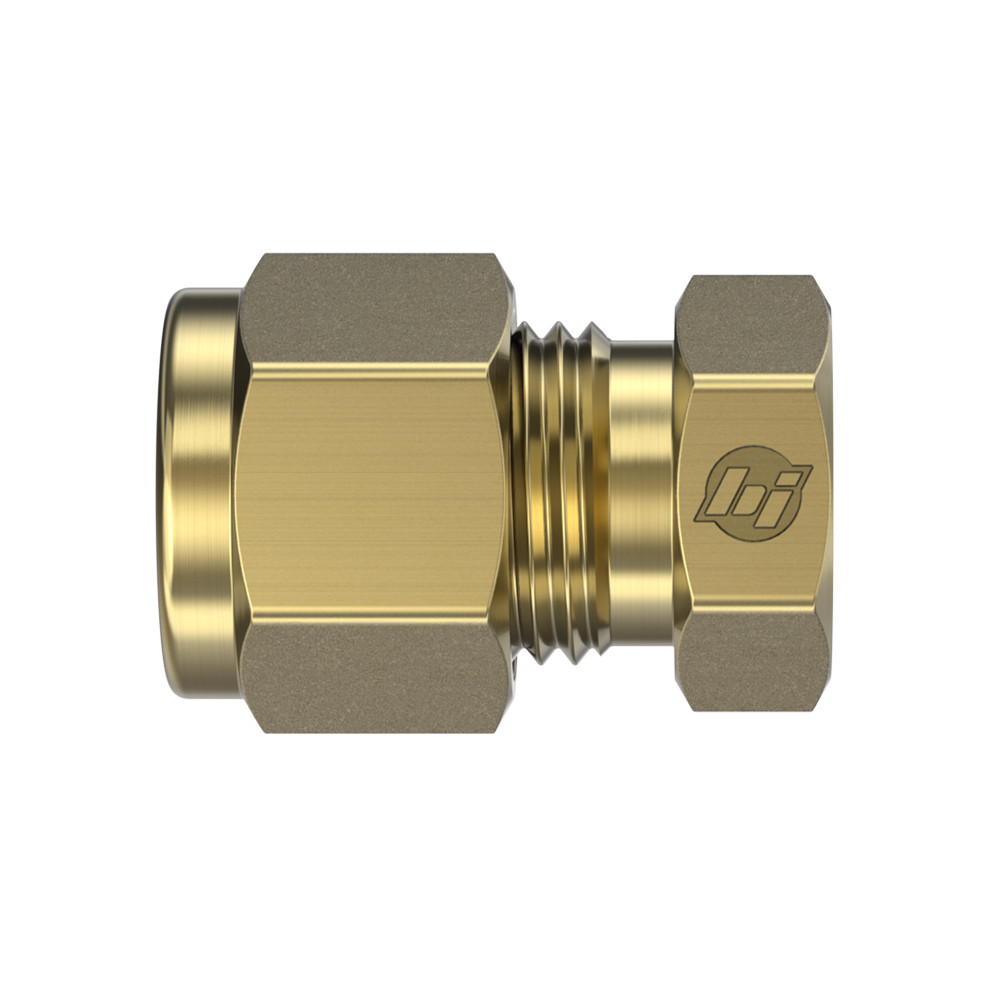

08IN CAP Brass
Specifications

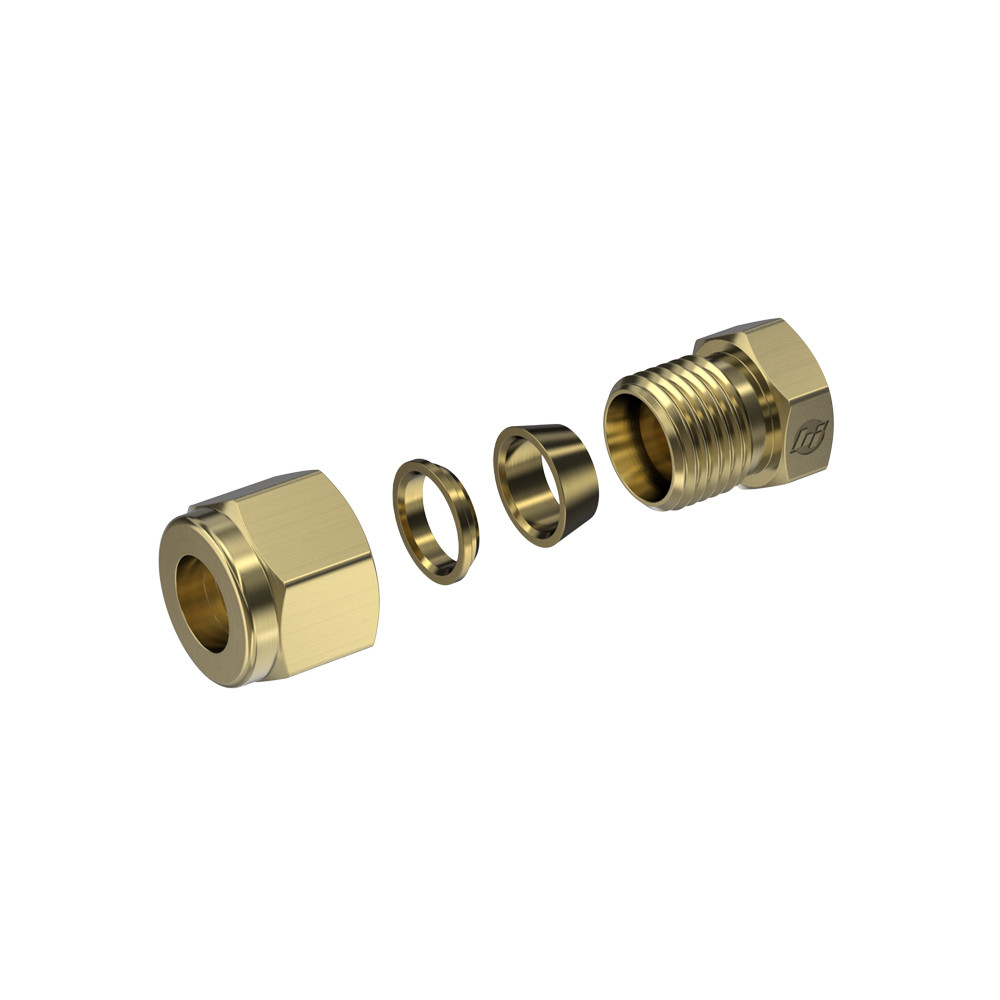

| Connection Details | {"Connection Type":"Double Ferrule Compression","Tube OD":"1/2\"","Thread Type":"3/4-20 UNEF","Standard":"ASME B31.3","Connection Standard":"ASME B31.3","Tube Fitting System":"Brennan N Series","Replacement Ferrule":"N0319-F-08-B | N0319-B-08-B","Replacement Nut":"N0318-08-B"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Primary Material":"Brass","Material Grade":"ASTM B16 C36000","Length":"1.15\""} |
| Dimensions | {"Hex/Wrench":"0.8125\"","Overall Length/Centerline":"1.15\"","Weight":"0.1935 lb"} |
| Performance Specifications | {"Working Pressure":"800 psi","Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Parker IPD ALOK Part Number":"8BLEN8-B","Swagelok Part Number":"B-810-C"} |
| Series Configuration | Double Ferrule Compression Cap |
| Side 1 Connection Type | Double Ferrule Compression |
| Product Type | Fittings |
