Attributes
| Part Number | N0304-04-B |
|---|---|
| Is Series Page | 0 |
Description

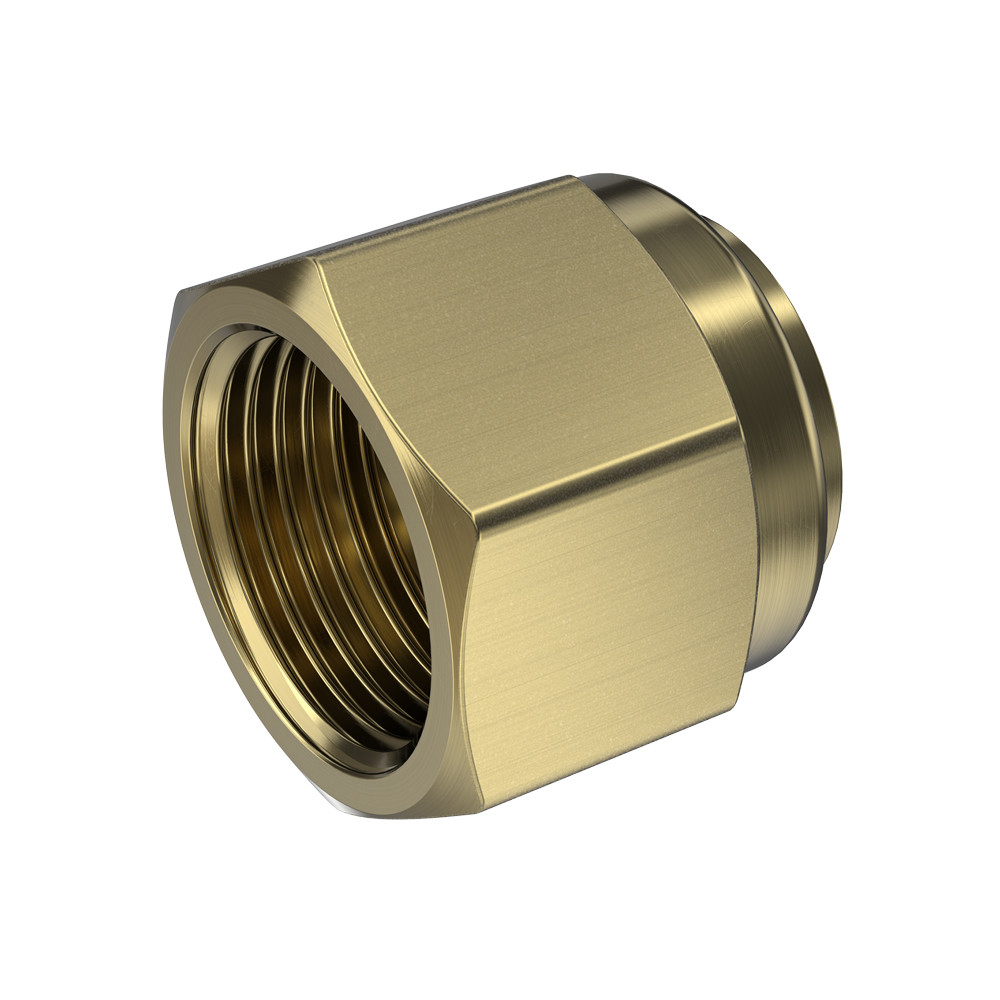

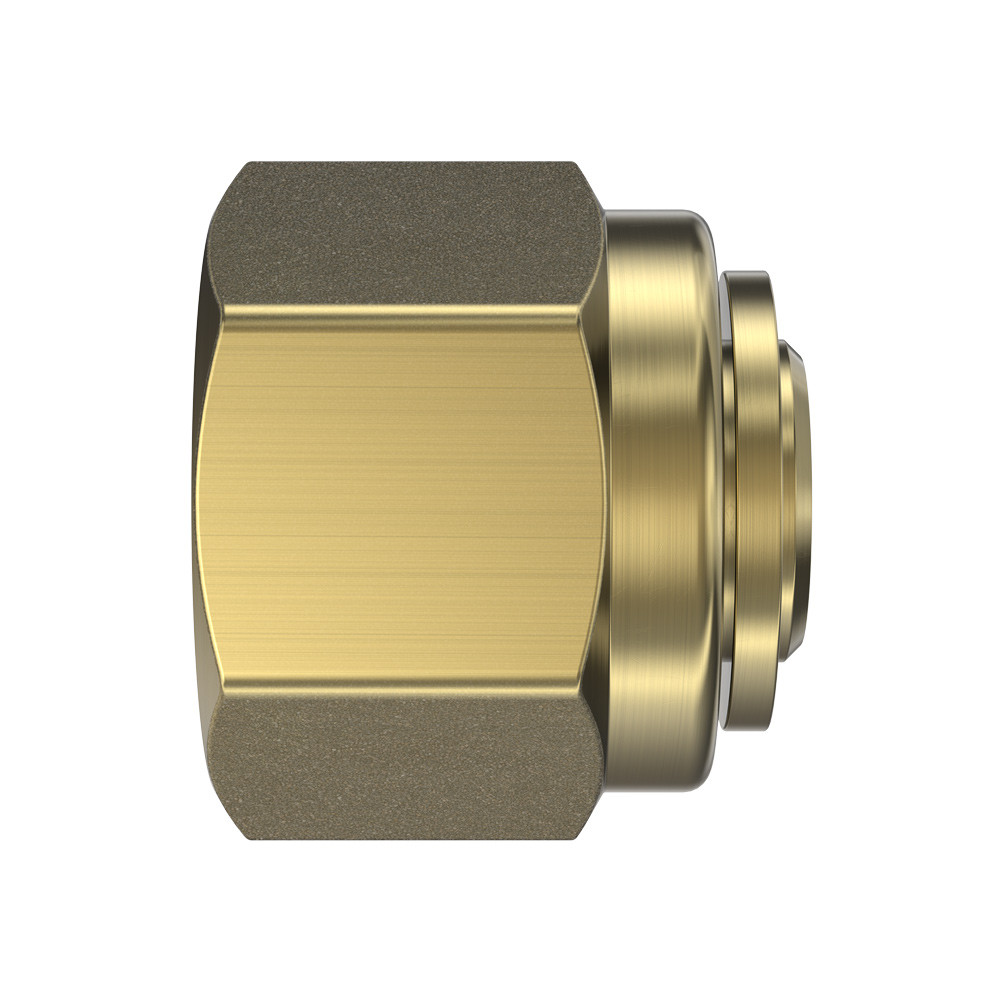

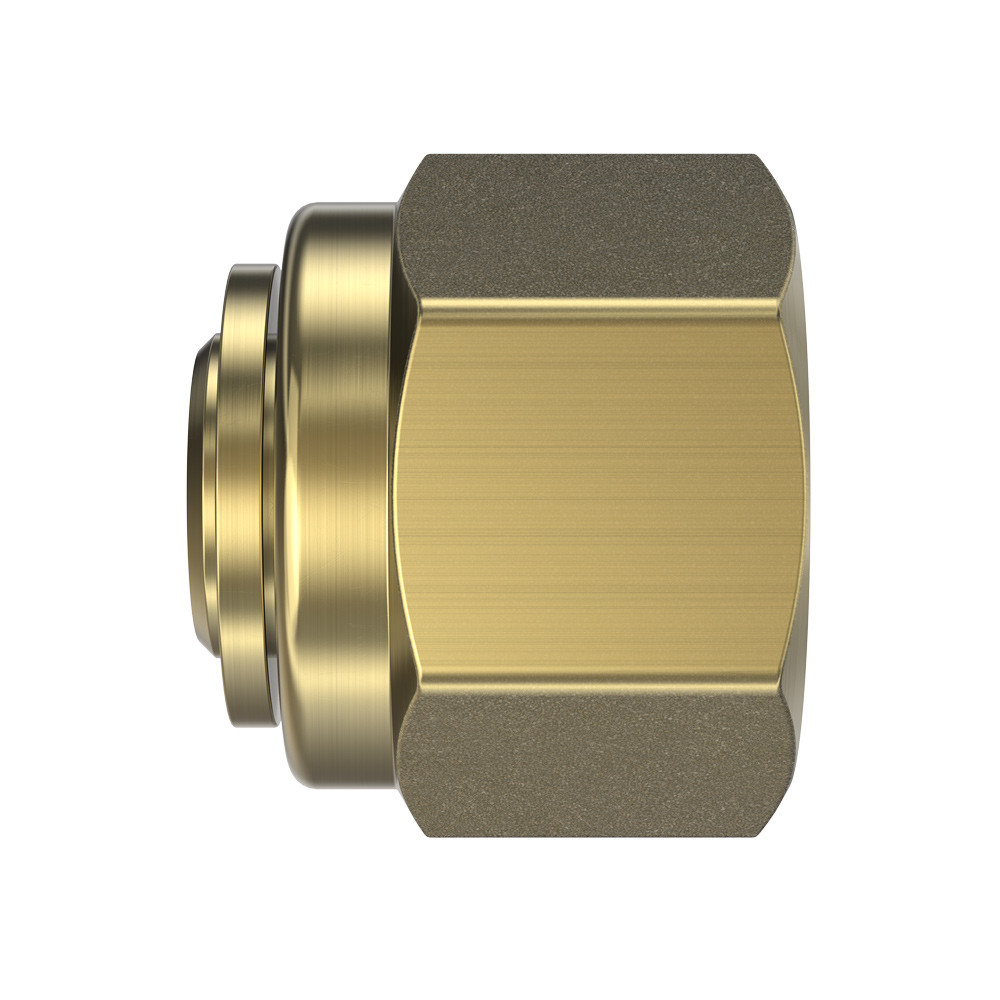

04IN Plug Brass
Specifications
| Connection Details | {"Connection Type":"Double Ferrule Compression Plug","Tube OD":"1/4\"","Thread Type":"7/16-20 UNF","Standard":"ASME B31.3","Connection Standard":"ASME B31.3","Tube Fitting System":"Brennan N Series"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Primary Material":"Brass","Material Grade":"ASTM B16 C36000"} |

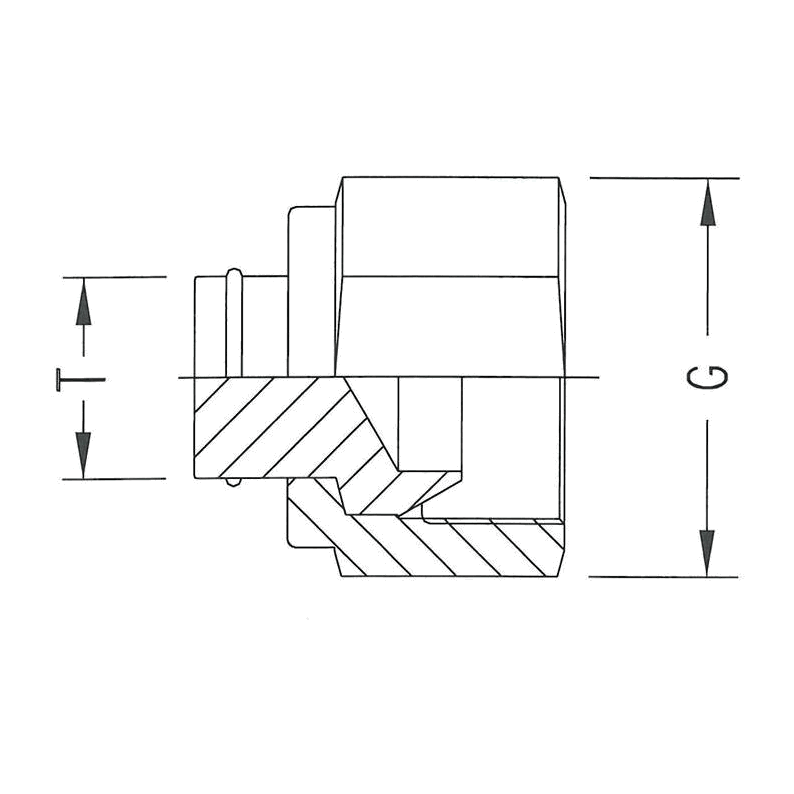

| Dimensions | {"Hex/Wrench":"0.5625\"","Weight":"0.0504 lb"} |
| Performance Specifications | {"Working Pressure":"1600 psi","Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Parker IPD ALOK Part Number":"4BLP4-B","Swagelok Part Number":"B-400-P"} |
| Series Configuration | Double Ferrule Compression Plug |
| Side 1 Connection Type | Double Ferrule Compression Plug |
| Product Type | Fittings |
