Attributes
| Part Number | D8400-L22-26-ED |
|---|---|
| Is Series Page | 0 |
Description

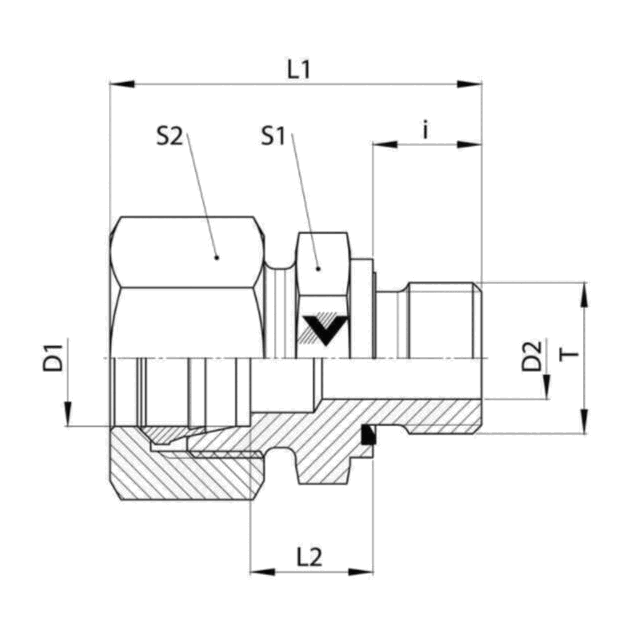

Steel, DIN 2353 Male Connector, Light 22mm Tube OD x 26mm Metric (Type E)
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"22mm","Side 1 Thread Type":"M30X2.0","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Male Metric ED Seal","Side 2 Thread Type":"M26X1.5","Side 2 Standard":"DIN 3852-11, ISO 9974-2","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"32mm","Weight":"0.46 lb"} |
| Performance Specifications | {"Working Pressure":"3626 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"14504 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GE22LMEDCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube x Male Metric ED Seal |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ISO 9974 Male Metric (Type E) Port Connector |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Male Metric ED Seal |
| Shape | Straight |
| Product Type | Fittings |
