Attributes
| Part Number | 739LMRB8MMX1/4 |
|---|---|
| Is Series Page | 0 |
Description

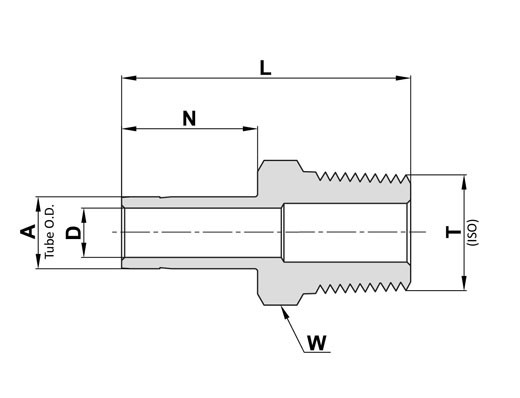

Brass, Let-Lok Tube Adapter Male ISO Tapered, 8mm Tube Adapter x 1/4" Male BSPT Thread
Specifications
| Connection Details | {"Side 1 Connection Type":"Tube Stub","Side 1 Tube OD":"8mm","Side 1 Role":"Tube Connection","Side 1 Tube Fitting System":"Ham-let Let-Lok Series","Side 2 Connection Type":"Male BSPT","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"R - 1/4-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Tube Adapter","Primary Material":"Brass","Length":"39.1mm"} |
| Dimensions | {"Hex/Wrench":"14mm","Overall Length/Centerline":"39.1mm","Weight":"0.066 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Gal #":"3101077","Swagelok Part Number":"B-8-MTA-1-4RT"} |
| Series Configuration | Tube Stub x Male BSPT |
| Side 1 Connection Type | Tube Stub |
| Side 2 Connection Type | Male BSPT |
| Product Type | Fittings |
