Attributes
| Part Number | 739LFB12MMX1/2 |
|---|---|
| Is Series Page | 0 |
Description
Brass, Let-Lok Tube Adapter Female NPT, 12mm Tube Adapter x 1/2" Female NPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Tube Stub","Side 1 Tube OD":"12mm","Side 1 Role":"Tube Connection","Side 1 Tube Fitting System":"Ham-let Let-Lok Series","Side 2 Connection Type":"Female NPT","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Tube Adapter","Primary Material":"Brass","Length":"52.3mm"} |

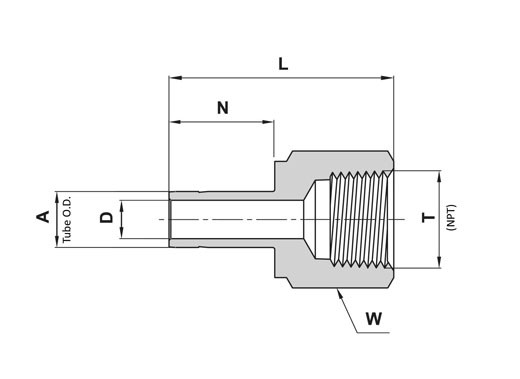

| Dimensions | {"Hex/Wrench":"27mm","Overall Length/Centerline":"52.3mm","Weight":"0.24 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Gal #":"3100092","Swagelok Part Number":"B-12-MTA-7-8"} |
| Series Configuration | Tube Stub x Female NPT |
| Side 1 Connection Type | Tube Stub |
| Side 2 Connection Type | Female NPT |
| Product Type | Fittings |
