Attributes
| Part Number | 7150-10-18-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description

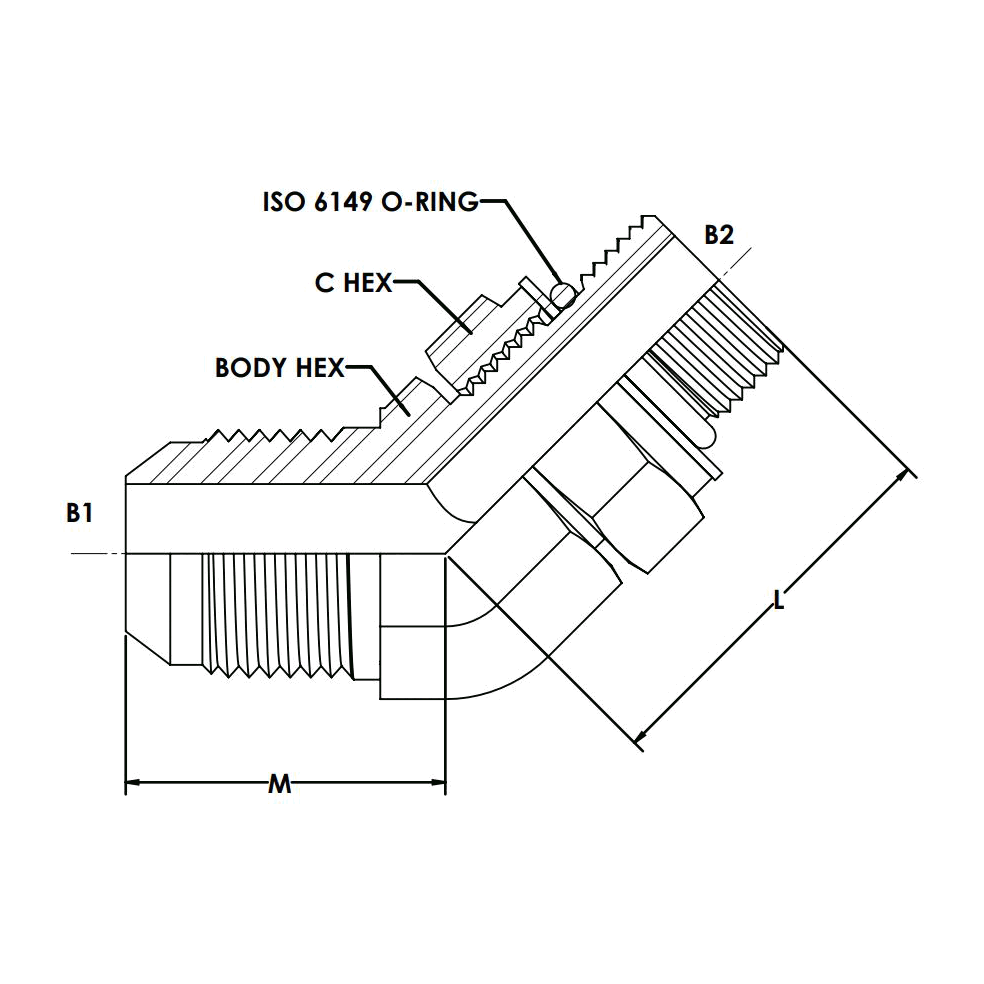

Steel, SAE J514 37° Flare Male Metric Adjustable (ISO 6149) Port 45° Elbow, 5/8" Male JIC x M18X1.5 Male Metric Adjustable ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Metric Adjustable ORB","Side 2 Thread Type":"M18X1.5","Side 2 Standard":"ISO 6149","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"8900-18"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.875","Weight":"0.85 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"10M18V87OMXS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male Metric Adjustable O-Ring Boss |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 6149 Male Metric Adjustable O-Ring Boss 45° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male Metric Adjustable ORB |
| Shape | 45° Elbow |
| Product Type | Fittings |
