Attributes
| Part Number | 739LMB1/4X3/8 |
|---|---|
| Is Series Page | 0 |
Description

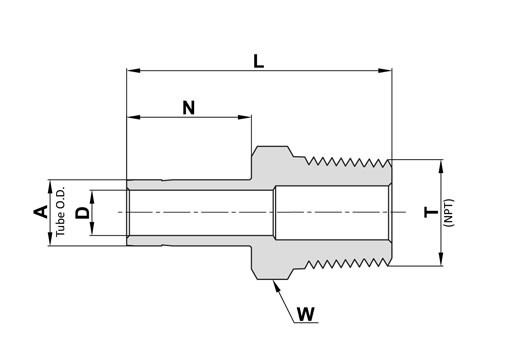

Brass, Let-Lok Tube Adapter Male NPT, 1/4" Tube Adapter x 3/8" Male NPT Thread
Specifications
| Connection Details | {"Side 1 Connection Type":"Tube Stub","Side 1 Tube OD":"1/4\"","Side 1 Role":"Tube Connection","Side 1 Tube Fitting System":"Ham-let Let-Lok Series","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"3/8-18 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Tube Adapter","Primary Material":"Brass","Length":"1.49\""} |
| Dimensions | {"Hex/Wrench":"0.6875\"","Overall Length/Centerline":"1.49\"","Weight":"0.066 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Gal #":"3101333","Swagelok Part Number":"B-4-TA-1-6"} |
| Series Configuration | Tube Stub x Male NPT |
| Side 1 Connection Type | Tube Stub |
| Side 2 Connection Type | Male NPT |
| Product Type | Fittings |
