Attributes
| Part Number | 7022-05-04 |
|---|---|
| Is Series Page | 0 |
Description

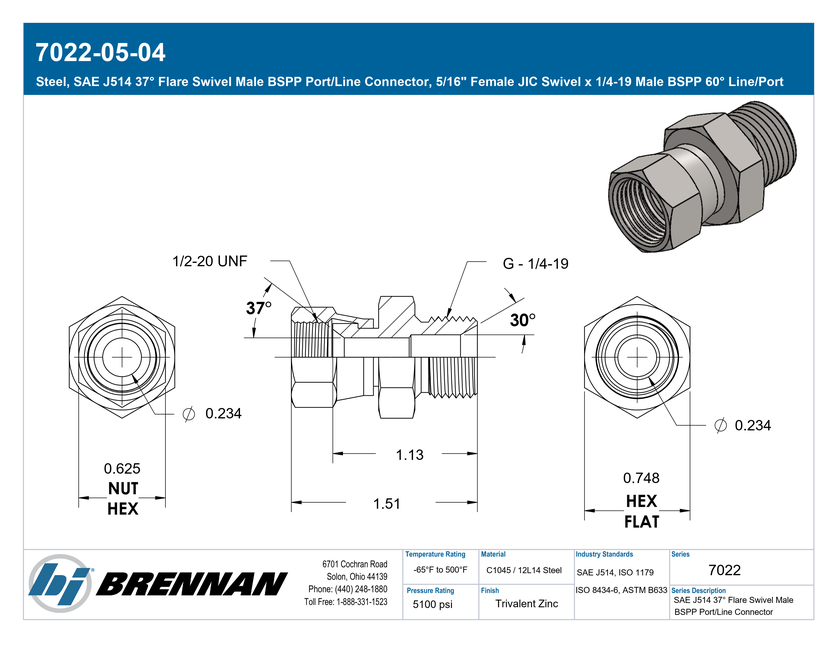

Steel, SAE J514 37° Flare Swivel Male BSPP Port/Line Connector, 5/16" Female JIC Swivel x 1/4-19 Male BSPP 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.748","Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"5100 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20400 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF4179-0504S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female JIC Swivel x Male BSPP |
| Technical Series Configuration | SAE J514 Female JIC Swivel Tube x ISO 1179/ISO 8434-6 Male BSPP Port/Line Connector |
| Side 1 Connection Type | Female JIC Swivel |
| Side 2 Connection Type | Male BSPP 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
