Attributes
| Part Number | N2601-04-04-02-B |
|---|---|
| Is Series Page | 0 |
Description

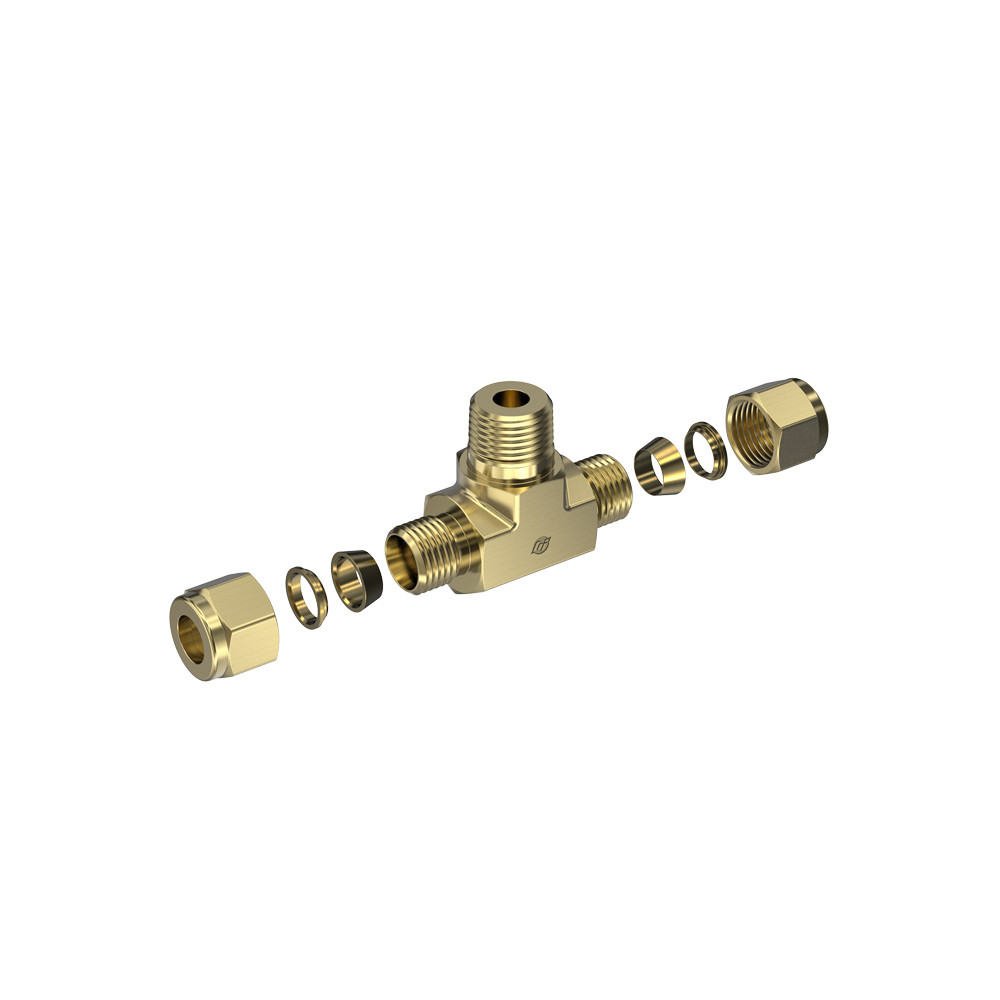

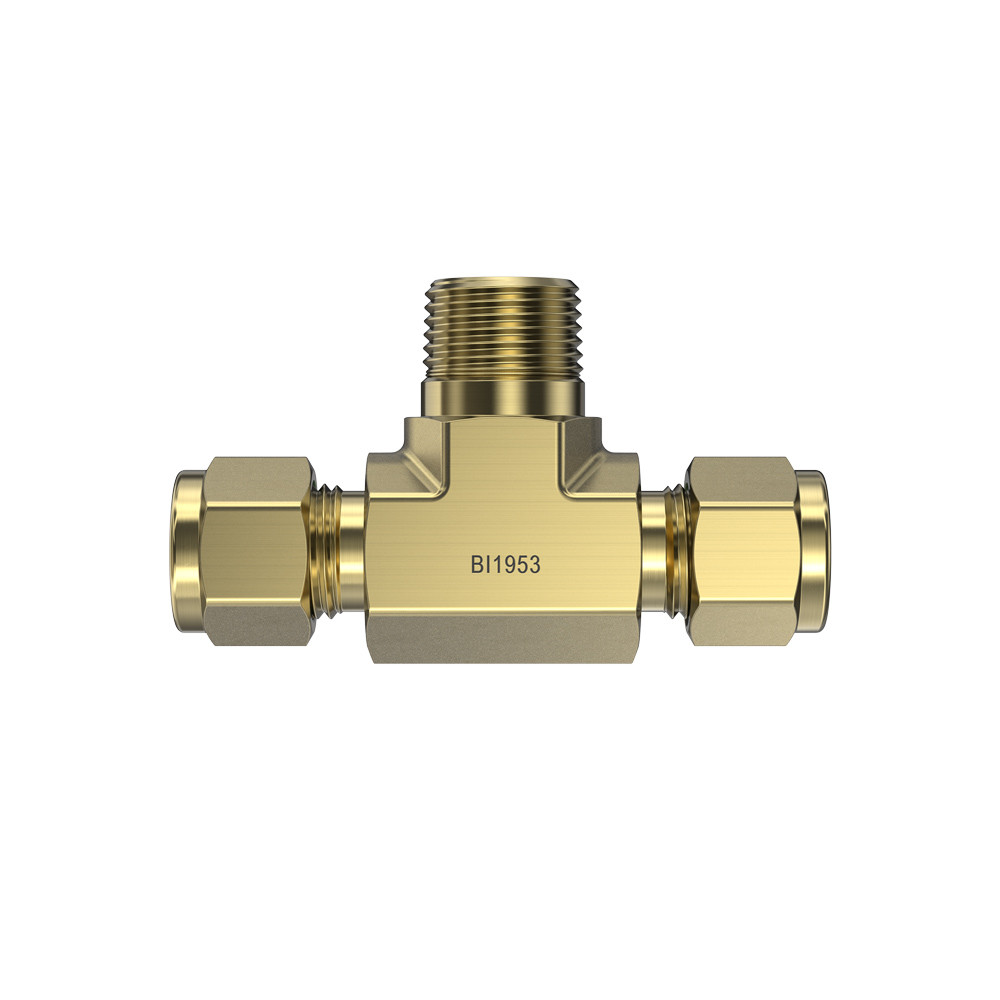

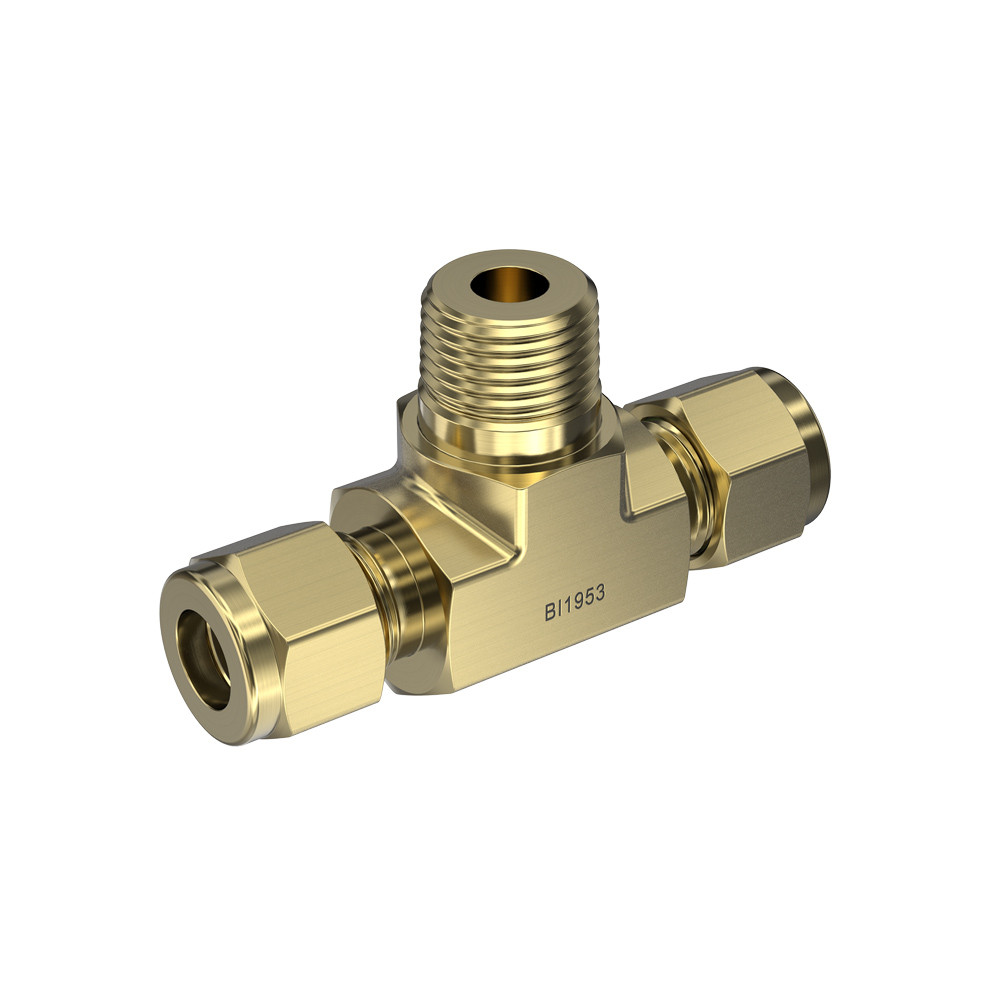

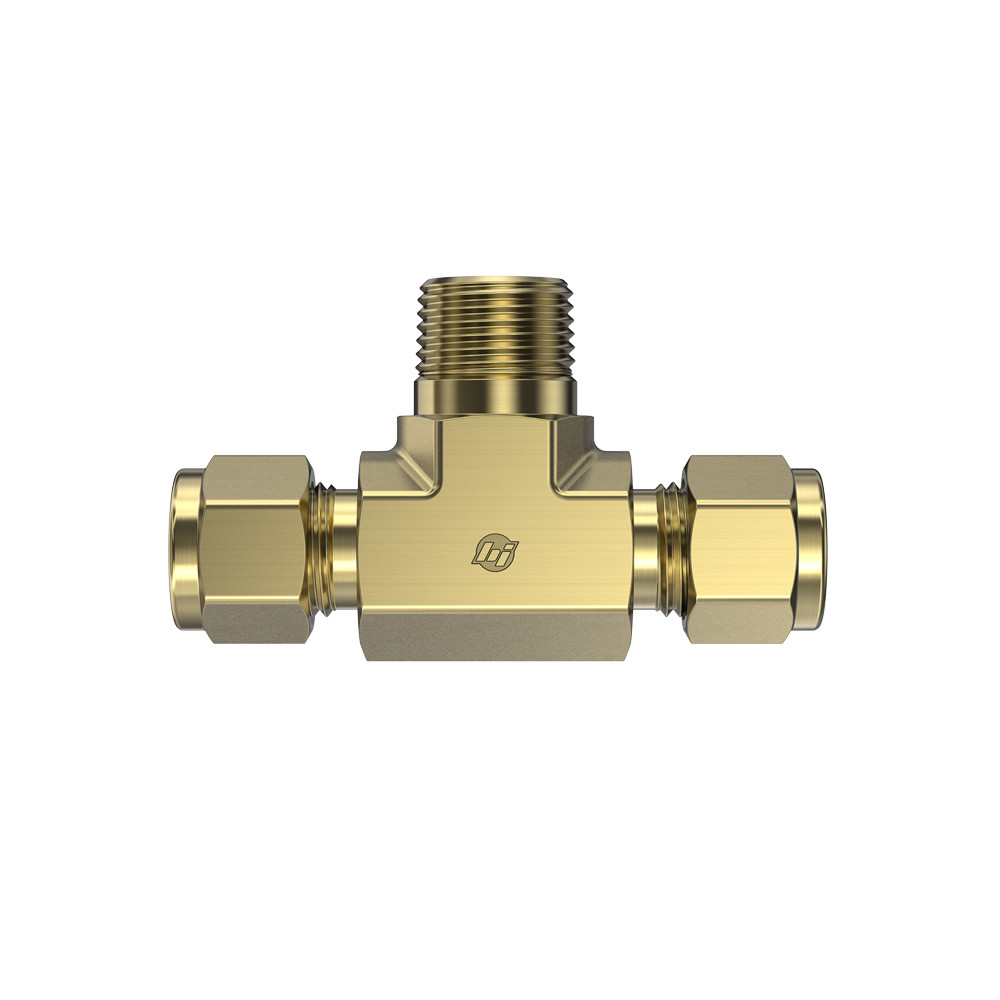

Brass, Brennan Tube Fitting Male Branch Tee, 1/4" Tube OD x 1/4" Tube OD x 1/8" Male NPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Double Ferrule Compression","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Role":"Tube Connection","Side 1 Replacement Ferrule":"N0319-F-04-B | N0319-B-04-B","Side 1 Replacement Nut":"N0318-04-B","Side 1 Tube Fitting System":"Brennan N Series","Side 2 Connection Type":"Double Ferrule Compression","Side 2 Tube OD":"1/4\"","Side 2 Thread Type":"7/16-20 UNF","Side 2 Role":"Tube Connection","Side 2 Replacement Ferrule":"N0319-F-04-B | N0319-B-04-B","Side 2 Replacement Nut":"N0318-04-B","Side 2 Tube Fitting System":"Brennan N Series","Side 3 Connection Type":"Male NPT","Side 3 Pipe Size":"1/8\"","Side 3 Thread Type":"1/8-27 NPT","Side 3 Standard":"ASME/ANSI B1.20.1","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Branch Tee","Primary Material":"Brass","Material Grade":"ASTM B124 CA37700","Length":"0.77\""} |

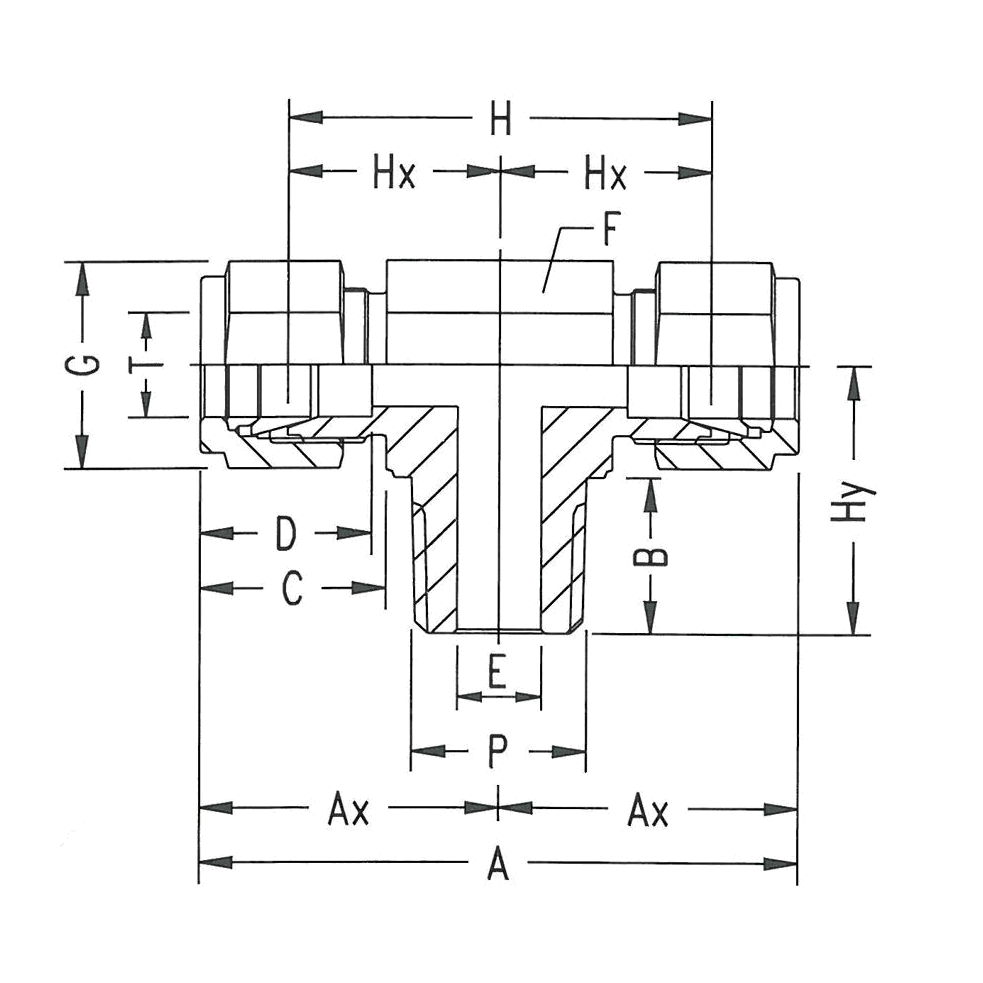

| Dimensions | {"Hex/Wrench":"0.5\"","Overall Length/Centerline":"0.77\"","Weight":"0.2132 lb"} |
| Performance Specifications | {"Working Pressure":"1600 psi","Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Parker IPD ALOK Part Number":"4MBT2N-B","Swagelok Part Number":"B-400-3TTM"} |
| Series Configuration | Double Ferrule Compression x Double Ferrule Compression x Male NPT |
| Side 1 Connection Type | Double Ferrule Compression |
| Side 2 Connection Type | Double Ferrule Compression |
| Shape | Tee |
| Product Type | Fittings |
