| Part Number | 2603-16-16-12-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Union Tee, 1" Male JIC x 1" Male JIC x 3/4" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1\"","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"3/4\"","Side 3 Thread Type":"1-1/16-12 UN","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Union Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"1.312","Weight":"0.93 lb"} |
| Performance Specifications | {"Working Pressure":"3500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"14000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2033-12-1616","Parker TFD Part Number":"16-16-12 JTX-SS","SAE J514 Part Number":"SAE J514 16-16-12 070401S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC x Male JIC |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube x Male JIC Tube Union Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

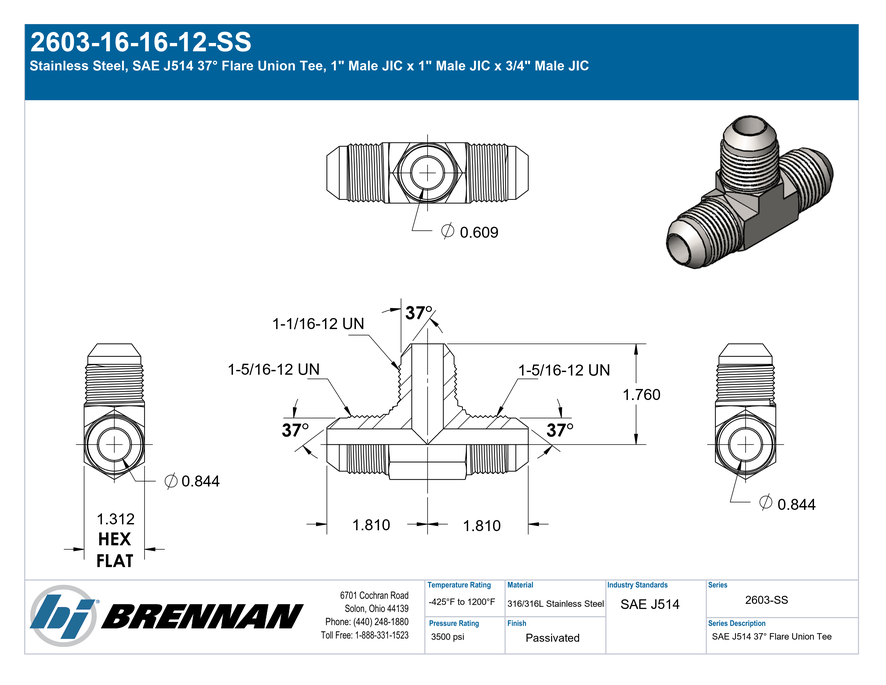

Specification Sheet
