Attributes
| Part Number | D6600-S25-S25-S25-SS |
|---|---|
| Is Series Page | 0 |
Description

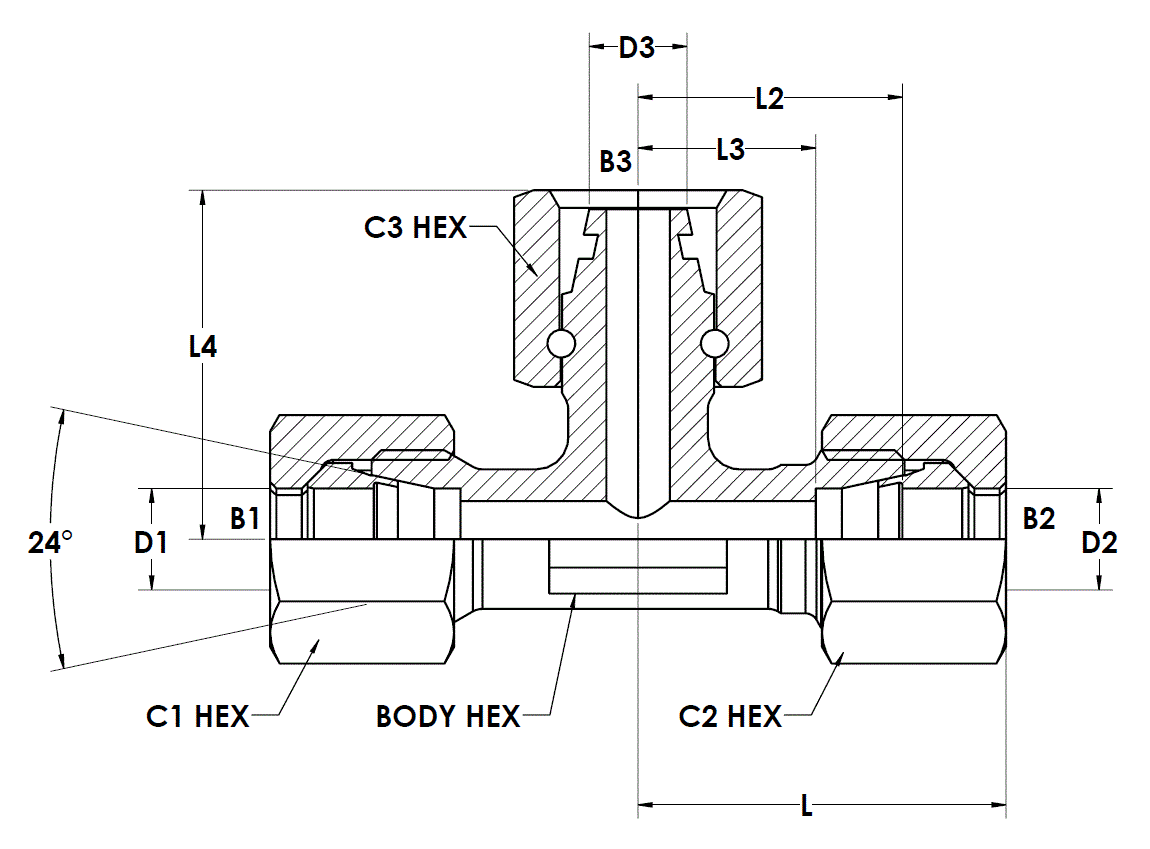

Stainless Steel, DIN 2353 Swivel Branch Tee, Heavy 25mm Tube OD x Heavy 25mm Tube OD x Heavy 25mm Female Metric Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"25mm","Side 1 Thread Type":"M36X2.0","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"DIN Tube","Side 2 Tube OD":"25mm","Side 2 Thread Type":"M36X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection","Side 2 DIN Pressure Series":"Heavy","Side 3 Connection Type":"Female Metric Swivel","Side 3 Tube OD":"25mm","Side 3 Thread Type":"M36X2.0","Side 3 Standard":"DIN 2353, ISO 8434-1","Side 3 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Swivel Branch Tee","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Hex/Wrench":"36mm","Weight":"2.48 lb"} |
| Performance Specifications | {"Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"ET25S71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x DIN Tube x DIN Tube Swivel |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x Flareless Tube x Flareless Swivel Tube Branch Tee |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | DIN Tube |
| Shape | Tee |
| Product Type | Fittings |
