Attributes
| Part Number | 119HB1/2X1/4 |
|---|---|
| Is Series Page | 0 |
Description

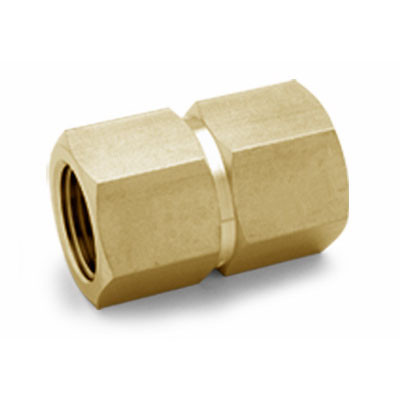

Brass Pipe fitting, Hex Coupling, Female NPT Thread1/2" x 1/4"
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPT","Side 1 Pipe Size":"1/2\"","Side 1 Thread Type":"1/2-14 NPT","Side 1 Standard":"ASME/ANSI B1.20.1","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPT","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Reducer Hex Coupling","Primary Material":"Brass","Length":"1.75\""} |
| Dimensions | {"Hex/Wrench":"1.0625\"","Overall Length/Centerline":"1.75\"","Weight":"0.37 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F"} |
| Cross References | {"Gal #":"3100993","Swagelok Part Number":"B-8-HRCG-4"} |
| Series Configuration | Female NPT x Female NPT |
| Side 1 Connection Type | Female NPT |
| Side 2 Connection Type | Female NPT |
| Product Type | Fittings |
