| Part Number | 2704-LN-16-24-20-FG |
|---|---|
| Is Series Page | 0 |
Description

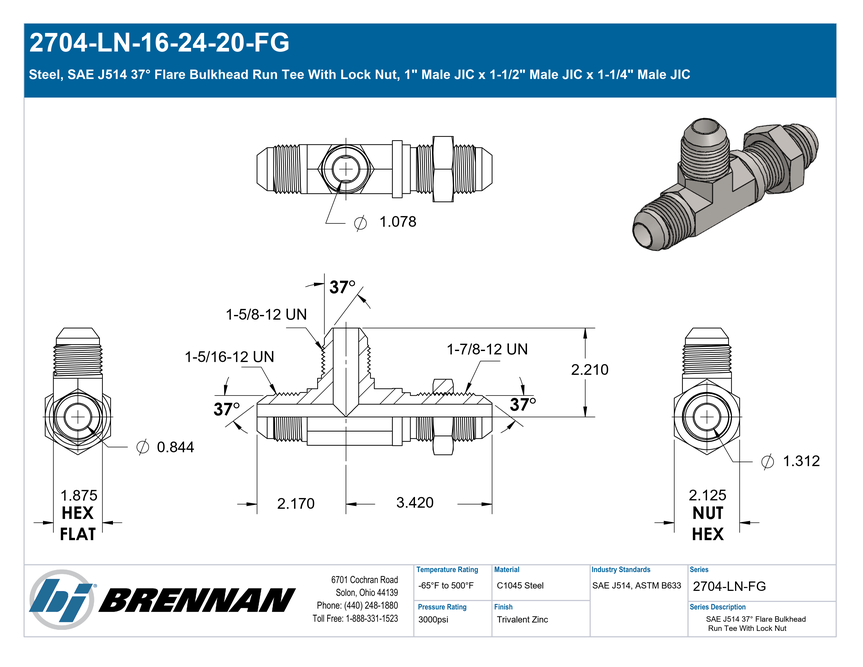

Steel, SAE J514 37° Flare Bulkhead Run Tee With Lock Nut, 1" Male JIC x 1-1/2" Male JIC x 1-1/4" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1-1/2\"","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"1-1/4\"","Side 3 Thread Type":"1-5/8-12 UN","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Bulkhead Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead"} |
| Dimensions | {"Weight":"1.40 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"16-24-20 WJJTX-WLN-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC Bulkhead x Male JIC, With Lock Nut |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube Bulkhead x Male JIC Tube Run Tee With Lock Nut |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Tee |
| Product Type | Fittings |
