Attributes
| Part Number | 764LB6MM |
|---|---|
| Is Series Page | 0 |
Description

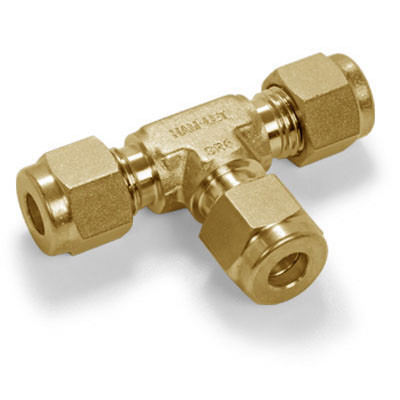

Brass, Let-Lok Tube Fitting Union Tee, 6mm Tube OD
Specifications
| Connection Details | {"Side 1 Connection Type":"Double Ferrule Compression","Side 1 Tube OD":"6mm","Side 1 Thread Type":"7/16-20 UNF","Side 1 Role":"Tube Connection","Side 1 Replacement Ferrule":"760LFB6MM | 760LBB6MM","Side 1 Replacement Nut":"761LB6MM","Side 1 Tube Fitting System":"Ham-let Let-Lok Series","Side 2 Connection Type":"Double Ferrule Compression","Side 2 Tube OD":"6mm","Side 2 Thread Type":"7/16-20 UNF","Side 2 Role":"Tube Connection","Side 2 Tube Fitting System":"Ham-let Let-Lok Series","Side 3 Connection Type":"Double Ferrule Compression","Side 3 Tube OD":"6mm","Side 3 Thread Type":"7/16-20 UNF","Side 3 Role":"Tube Connection","Side 3 Tube Fitting System":"Ham-let Let-Lok Series"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Union Tee","Primary Material":"Brass"} |
| Dimensions | {"Hex/Wrench":"12.7mm","Overall Length/Centerline":"19.6mm","Weight":"0.154 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Gal #":"3100205","Swagelok Part Number":"B-6M0-3"} |
| Series Configuration | Double Ferrule Compression x Double Ferrule Compression x Double Ferrule Compression |
| Side 1 Connection Type | Double Ferrule Compression |
| Side 2 Connection Type | Double Ferrule Compression |
| Product Type | Fittings |
