Attributes
| Part Number | 761LB3/4 |
|---|---|
| Is Series Page | 0 |
Description
Brass, Let-Lok Nut 3/4"
Specifications
| Connection Details | {"Connection Type":"Double Ferrule Tube Nut","Tube OD":"3/4\"","Thread Type":"1-20 UNEF","Tube Fitting System":"Ham-let Let-Lok & One-Lok Series"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Primary Material":"Brass","Length":"0.69\""} |

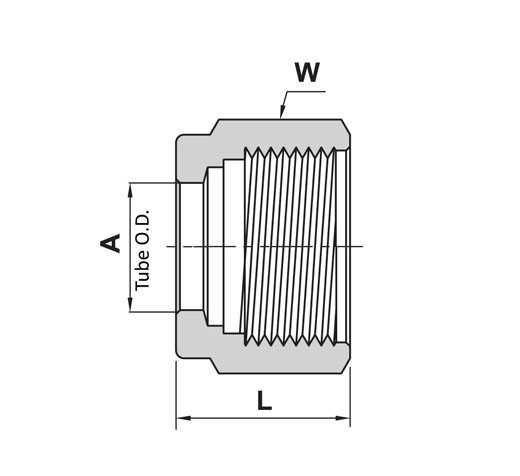

| Dimensions | {"Hex/Wrench":"1.125\"","Overall Length/Centerline":"0.69\"","Weight":"0.082 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Gal #":"3600081","Swagelok Part Number":"B-1212-1"} |
| Series Configuration | Double Ferrule Tube Nut |
| Side 1 Connection Type | Double Ferrule Tube Nut |
| Product Type | Fittings |
