Attributes
| Part Number | 121HOBSS9/1618 |
|---|---|
| Is Series Page | 0 |
Description

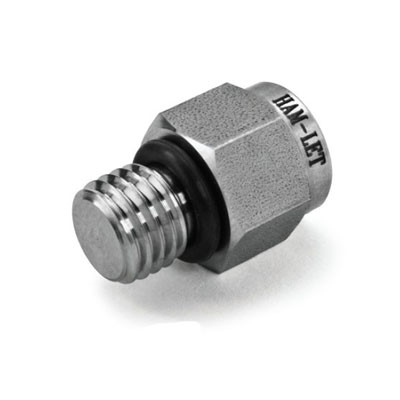

Stainless Steel 316 Hex Head Plug, Male SAE/MS 9/16"-18
Specifications
| Connection Details | {"Connection Type":"ORB Plug","Thread Type":"9/16-18 UNF","Role":"Port Connection","Connection Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Primary Material":"Stainless Steel","Material Grade":"316L","Surface Treatment":"Passivated","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)","Length":"0.82\""} |
| Dimensions | {"Hex/Wrench":"0.6875\"","Overall Length/Centerline":"0.82\"","Weight":"0.22 lb"} |
| Performance Specifications | {"Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal"} |
| Cross References | {"Gal #":"3000925","Swagelok Part Number":"SS-6-PST"} |
| Series Configuration | ORB Plug |
| Side 1 Connection Type | ORB Plug |
| Product Type | Fittings |
