Attributes
| Part Number | 6420-16-16 |
|---|---|
| Is Series Page | 0 |
Description

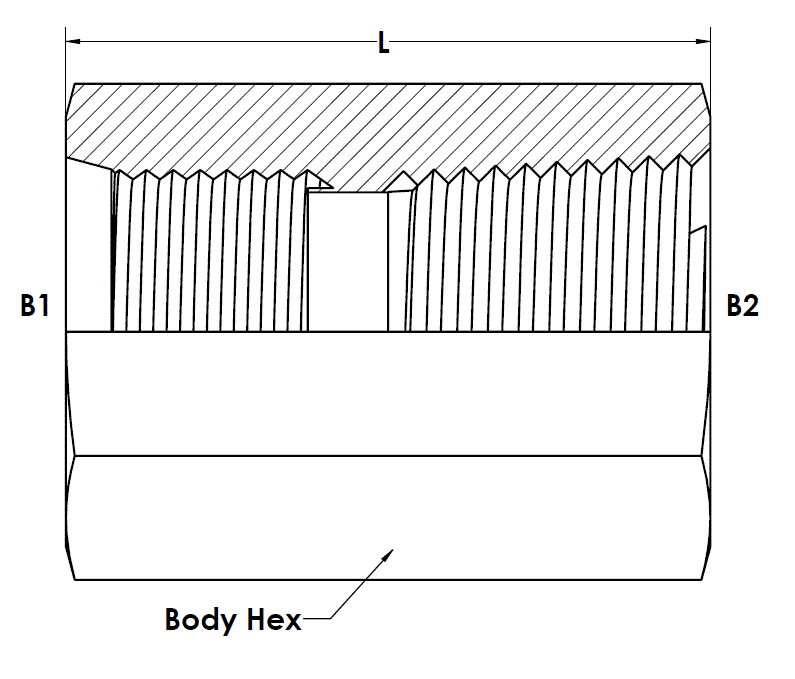

Steel, SAE J1926 O-Ring Boss Female Adapter Coupling, 1-5/16-12 Female ORB x 1" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Coupling","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.55 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female ORB x Female Pipe |
| Technical Series Configuration | SAE J1926-3 Female O-Ring Boss x Female NPTF Coupling |
| Side 1 Connection Type | Female ORB |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
