Attributes
| Part Number | N0319-B-05-B |
|---|---|
| Is Series Page | 0 |
Description

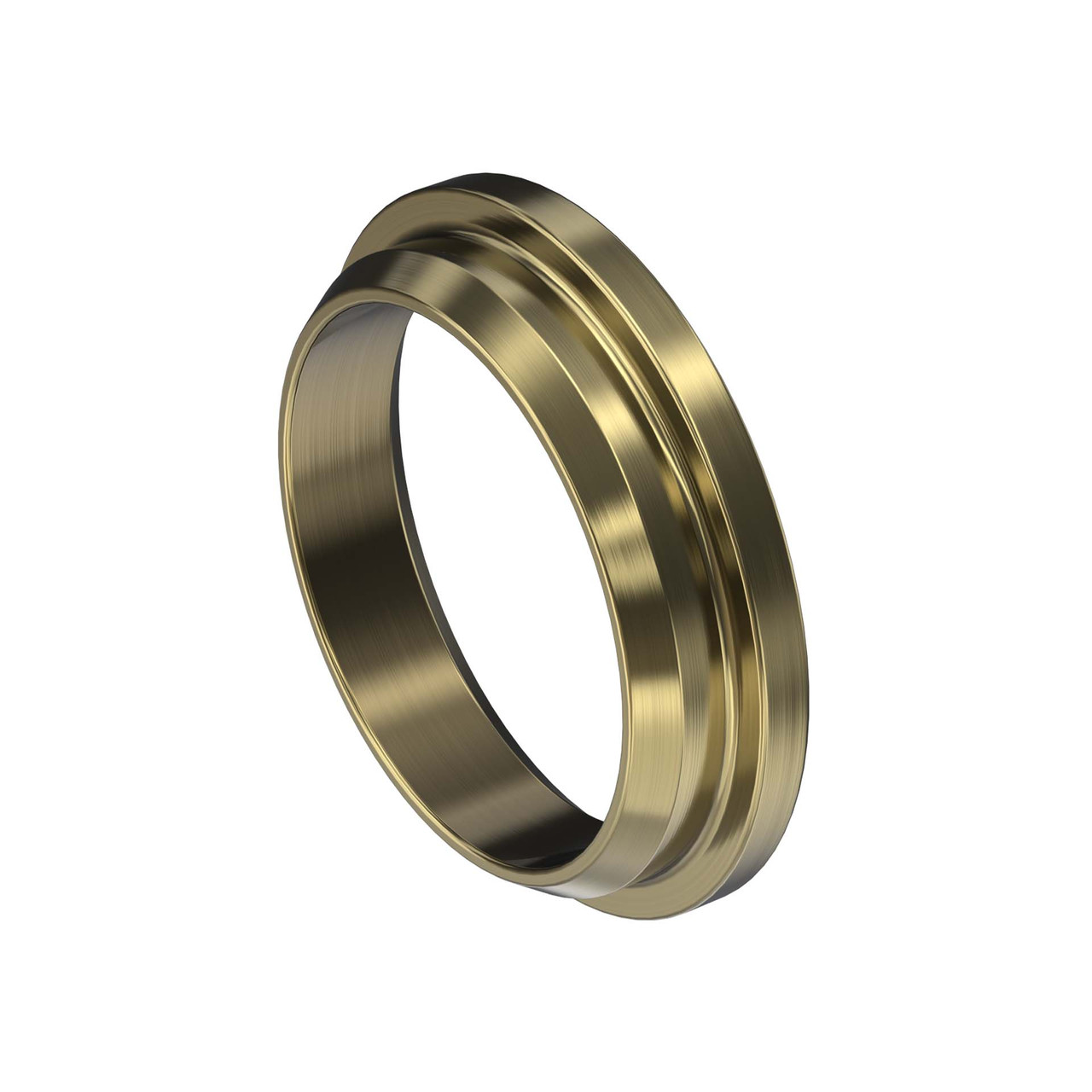

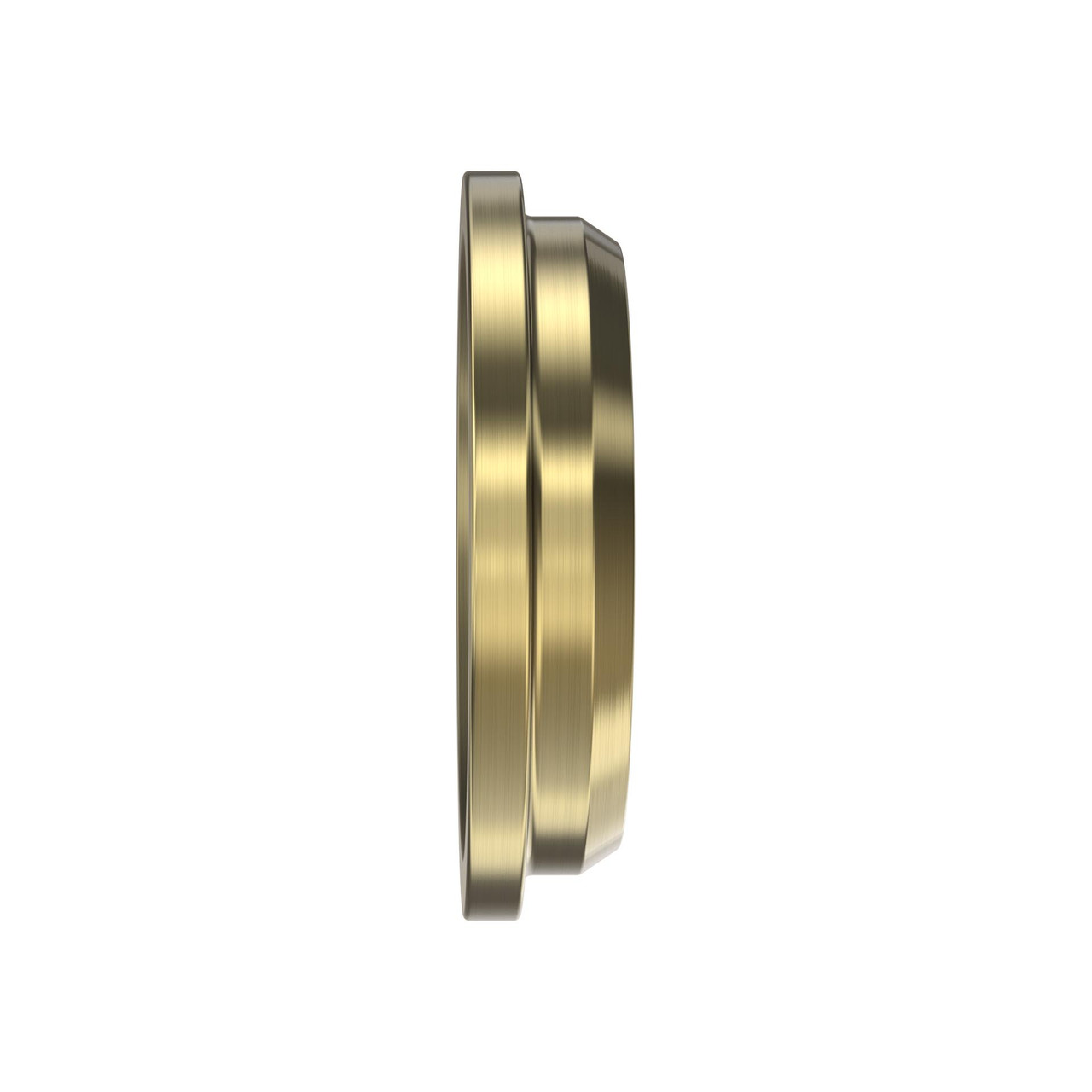

05 Back Ferrule Brass
Specifications
| Connection Details | {"Connection Type":"Double Ferrule Compression Back Ferrule","Tube OD":"5/16\"","Standard":"ASME B31.3","Connection Standard":"ASME B31.3","Tube Fitting System":"Brennan N Series"} |
|---|---|
| Body & Materials | {"Shape":"Sleeve","Primary Material":"Brass","Material Grade":"ASTM B16 C36000"} |
| Dimensions | {"Weight":"0.01 lb"} |
| Performance Specifications | {"Working Pressure":"1300 psi","Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Parker IPD ALOK Part Number":"5BF5-B"} |
| Series Configuration | Double Ferrule Compression Back Ferrule |
| Side 1 Connection Type | Double Ferrule Compression Back Ferrule |
| Product Type | Fittings |
