Attributes
| Part Number | 121HSS1/4 |
|---|---|
| Is Series Page | 0 |
Description

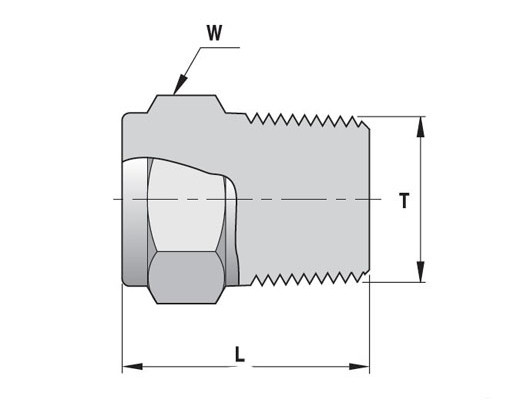

Stainless Steel 316 Pipe Plug, Male NPT 1/4"
Specifications
| Connection Details | {"Connection Type":"NPT Plug","Pipe Size":"1/4\"","Thread Type":"1/4-18 NPT","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Primary Material":"Stainless Steel","Material Grade":"316L","Surface Treatment":"Passivated","Length":"0.96\""} |
| Dimensions | {"Hex/Wrench":"0.5625\"","Overall Length/Centerline":"0.96\"","Weight":"0.056 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Gal #":"3001196","Parker IPD ALOK Part Number":"4 PH-SS","Swagelok Part Number":"SS-4-P"} |
| Series Configuration | NPT Plug |
| Side 1 Connection Type | NPT Plug |
| Product Type | Fittings |
