Attributes
| Part Number | 130HMSS3/16X1/4 |
|---|---|
| Is Series Page | 0 |
Description

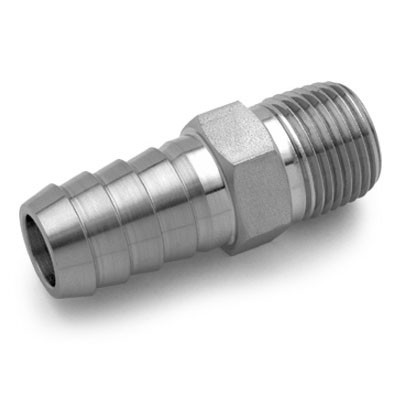

Stainless Steel 316 Pipe Fitting, Hose Connector 3/16" x Male NPT 1/4"
Specifications
| Connection Details | {"Side 1 Connection Type":"Hose Connector","Side 1 Hose ID":"3/16\"","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316L","Surface Treatment":"Passivated","Length":"1.45\""} |
| Dimensions | {"Hex/Wrench":"0.5625\"","Overall Length/Centerline":"1.45\"","Weight":"0.044 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Gal #":"3001297","Swagelok Part Number":"SS-3-HC-1-4"} |
| Series Configuration | Hose Connector x Male NPT |
| Side 1 Connection Type | Hose Connector |
| Side 2 Connection Type | Male NPT |
| Product Type | Fittings |
