Attributes
| Part Number | 764LRB5/8X5/8X3/8 |
|---|---|
| Is Series Page | 0 |
Description

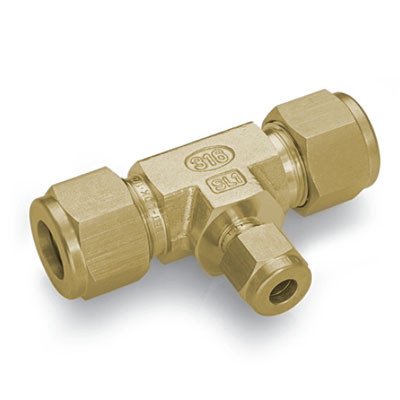

Brass, Let-Lok Tube Fitting Union Reducer Tee, 5/8" x 5/8" x 3/8" Tube OD
Specifications
| Connection Details | {"Side 1 Connection Type":"Double Ferrule Compression","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-20 UNEF","Side 1 Role":"Tube Connection","Side 1 Replacement Ferrule":"760LFB5/8 | 760LBB5/8","Side 1 Replacement Nut":"761LB5/8","Side 1 Tube Fitting System":"Ham-let Let-Lok Series","Side 2 Connection Type":"Double Ferrule Compression","Side 2 Tube OD":"5/8\"","Side 2 Thread Type":"7/8-20 UNEF","Side 2 Role":"Tube Connection","Side 2 Tube Fitting System":"Ham-let Let-Lok Series","Side 3 Connection Type":"Double Ferrule Compression","Side 3 Tube OD":"3/8\"","Side 3 Thread Type":"9/16-20 UN","Side 3 Role":"Tube Connection","Side 3 Tube Fitting System":"Ham-let Let-Lok Series"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Union Reducer Tee","Primary Material":"Brass","Length":"1.13\""} |
| Dimensions | {"Hex/Wrench":"0.9375\"","Overall Length/Centerline":"1.13\"","Weight":"0.5952 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Gal #":"3100545"} |
| Series Configuration | Double Ferrule Compression x Double Ferrule Compression x Double Ferrule Compression Reducer |
| Side 1 Connection Type | Double Ferrule Compression |
| Side 2 Connection Type | Double Ferrule Compression |
| Product Type | Fittings |
