Attributes
| Part Number | 768LB1/8X1/8TC |
|---|---|
| Is Series Page | 0 |
Description

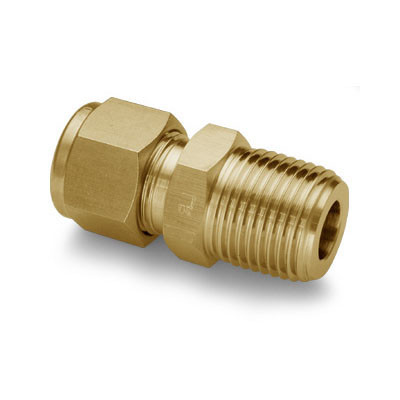

Brass, Let-Lok Tube Fitting Male Connector, 1/8" Tube OD x 1/8" Male NPT, Thermo Couple
Specifications
| Connection Details | {"Side 1 Connection Type":"Double Ferrule Compression","Side 1 Tube OD":"1/8\"","Side 1 Thread Type":"5/16-20 UN","Side 1 Role":"Tube Connection","Side 1 Replacement Ferrule":"760LFB1/8 | 760LBB1/8","Side 1 Replacement Nut":"761LB1/8","Side 1 Tube Fitting System":"Ham-let Let-Lok Series","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"1/8-27 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Brass","Feature":"Thermo Couple","Length":"1.2\""} |
| Dimensions | {"Hex/Wrench":"0.4375\"","Overall Length/Centerline":"1.2\"","Weight":"0.046 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Gal #":"3102640"} |
| Series Configuration | Double Ferrule Compression x Male NPT |
| Side 1 Connection Type | Double Ferrule Compression |
| Side 2 Connection Type | Male NPT |
| Product Type | Fittings |
