Attributes
| Part Number | N2404-04-06-B |
|---|---|
| Is Series Page | 0 |
Description

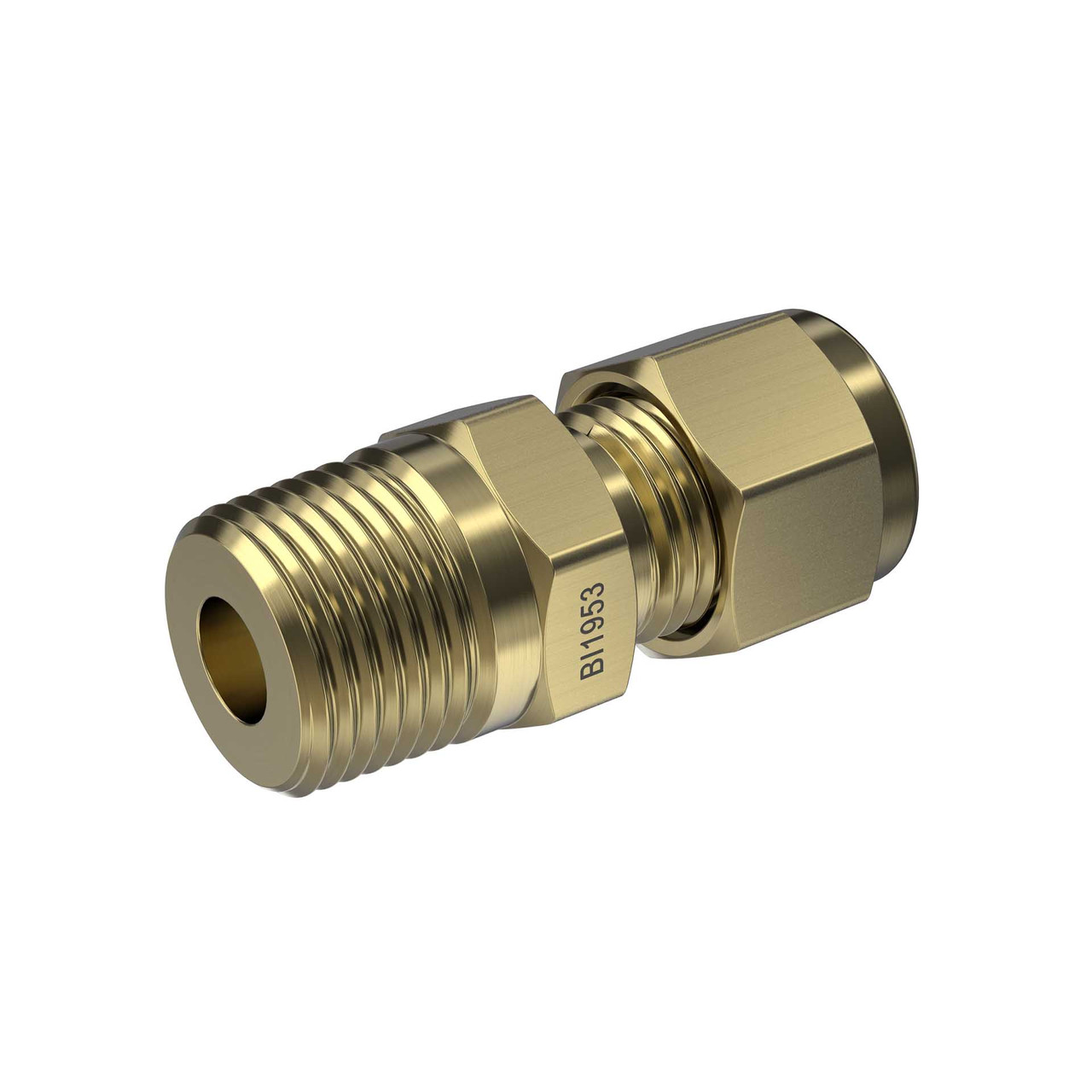

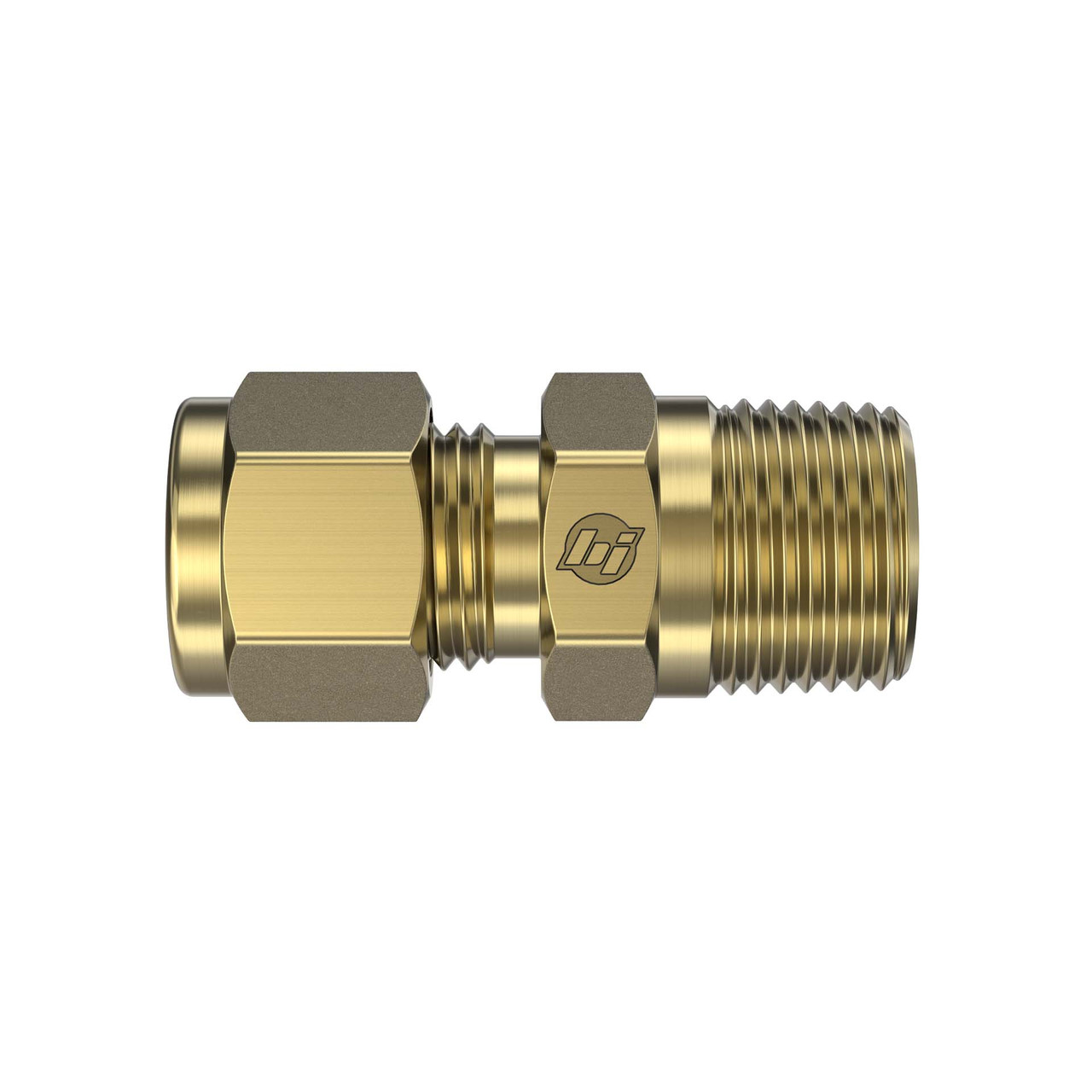

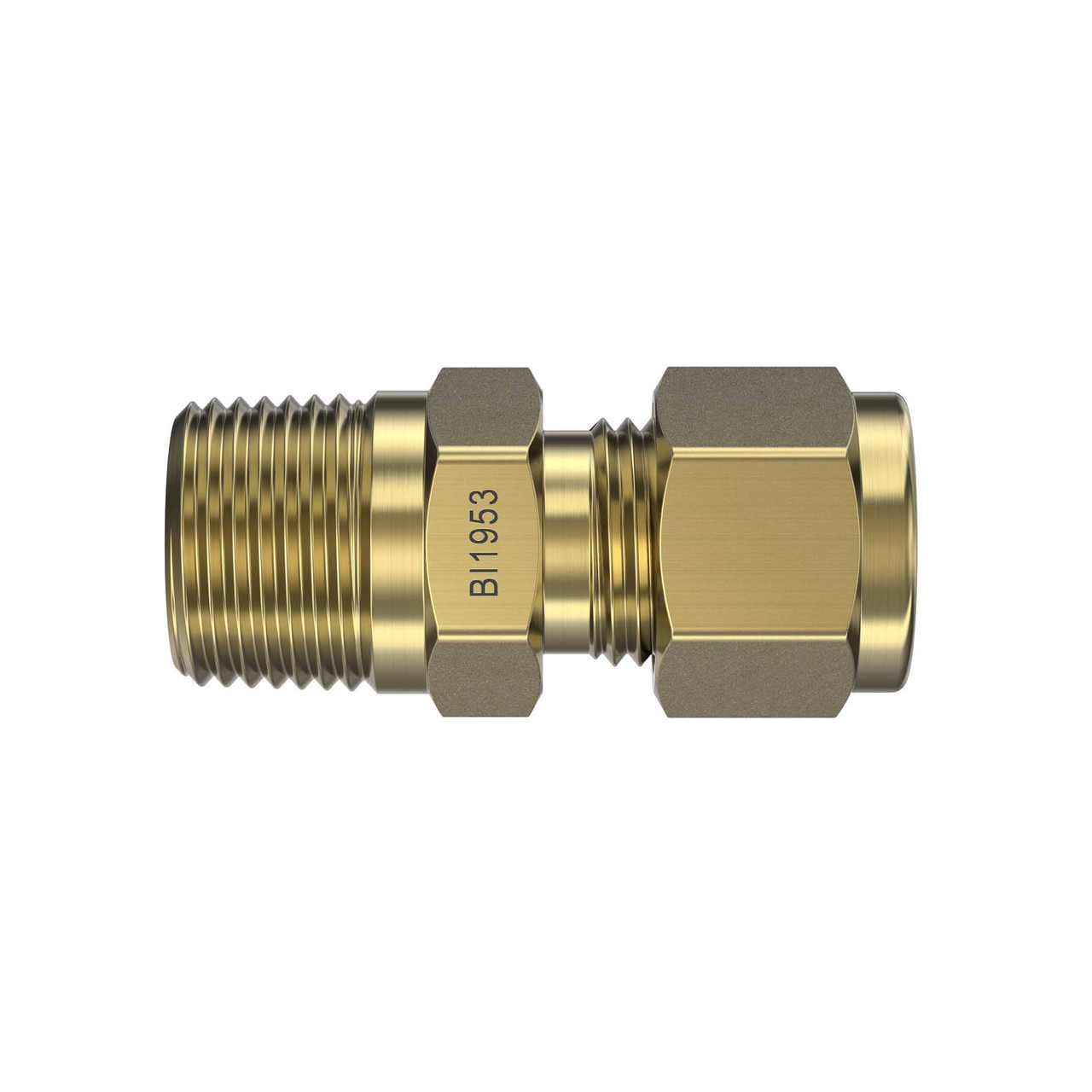

Brass, Brennan Tube Fitting Male Connector, 1/4" Tube OD x 3/8" Male NPT
Specifications

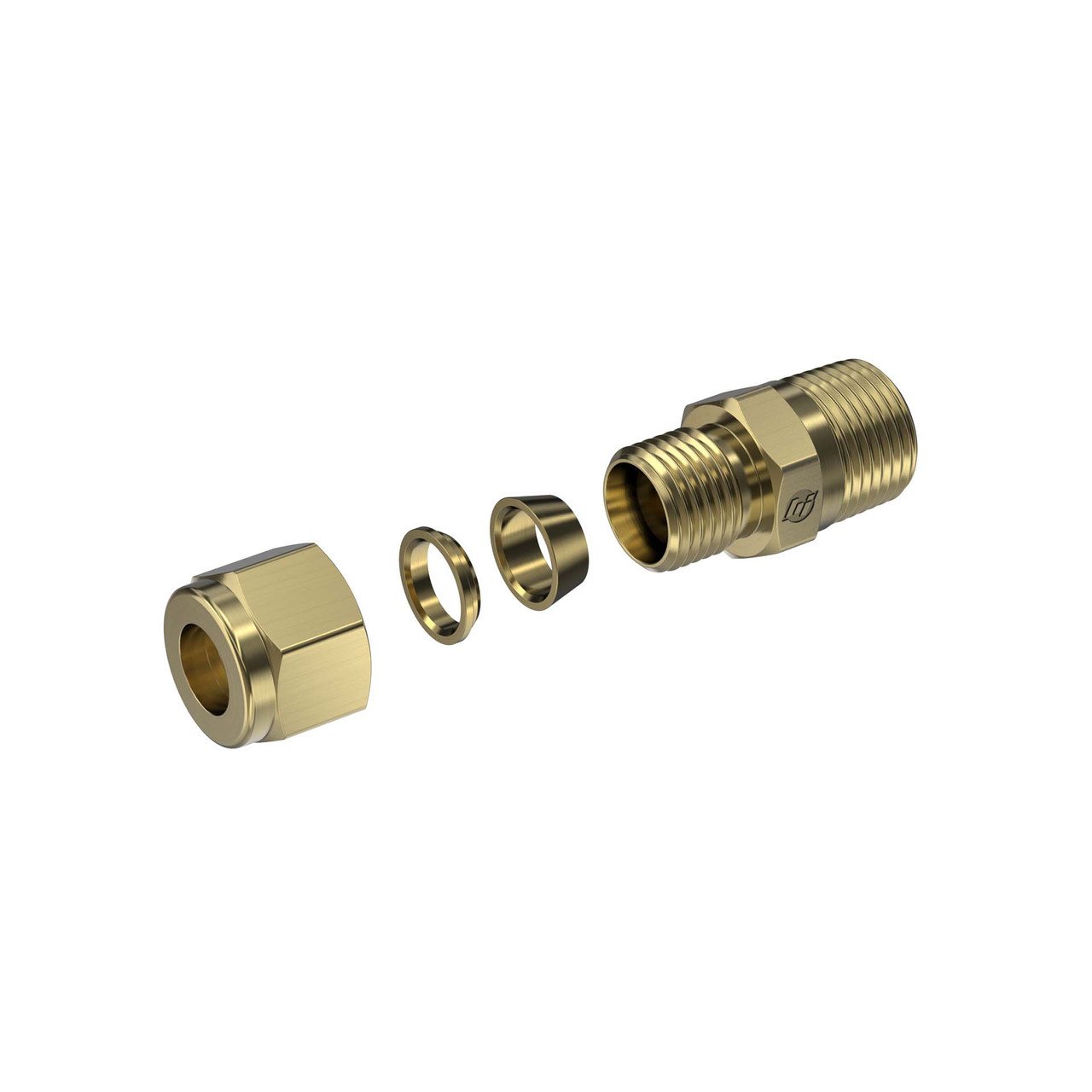

| Connection Details | {"Side 1 Connection Type":"Double Ferrule Compression","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Role":"Tube Connection","Side 1 Replacement Ferrule":"N0319-F-04-B | N0319-B-04-B","Side 1 Replacement Nut":"N0318-04-B","Side 1 Tube Fitting System":"Brennan N Series","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"3/8-18 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Brass","Material Grade":"ASTM B16 C36000","Length":"1.51\""} |
| Dimensions | {"Hex/Wrench":"0.6875\"","Overall Length/Centerline":"1.51\"","Weight":"0.1368 lb"} |
| Performance Specifications | {"Working Pressure":"1600 psi","Temperature Range":"-325°F to 400°F","Suggested Tubing":"High-quality, soft annealed seamless copper tubing manufactured to ASTM B75 or equivalent standards. Alternative: Soft annealed (Temper O) copper water tube, Type K or Type L, manufactured to ASTM B88. Condition: Tubing must be free of surface defects and scratches, suitable for reliable flaring and bending. Hardness: Soft annealed condition required to ensure proper bite and sealing in compression fittings. Tolerances: OD and wall thickness tolerances should conform to the applicable ASTM standard.","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Parker IPD ALOK Part Number":"4MSC6N-B","Swagelok Part Number":"B-400-1-6"} |
| Series Configuration | Double Ferrule Compression x Male NPT |
| Side 1 Connection Type | Double Ferrule Compression |
| Side 2 Connection Type | Male NPT |
| Product Type | Fittings |
