Attributes
| Part Number | 7030-24-24 |
|---|---|
| Is Series Page | 0 |
Description

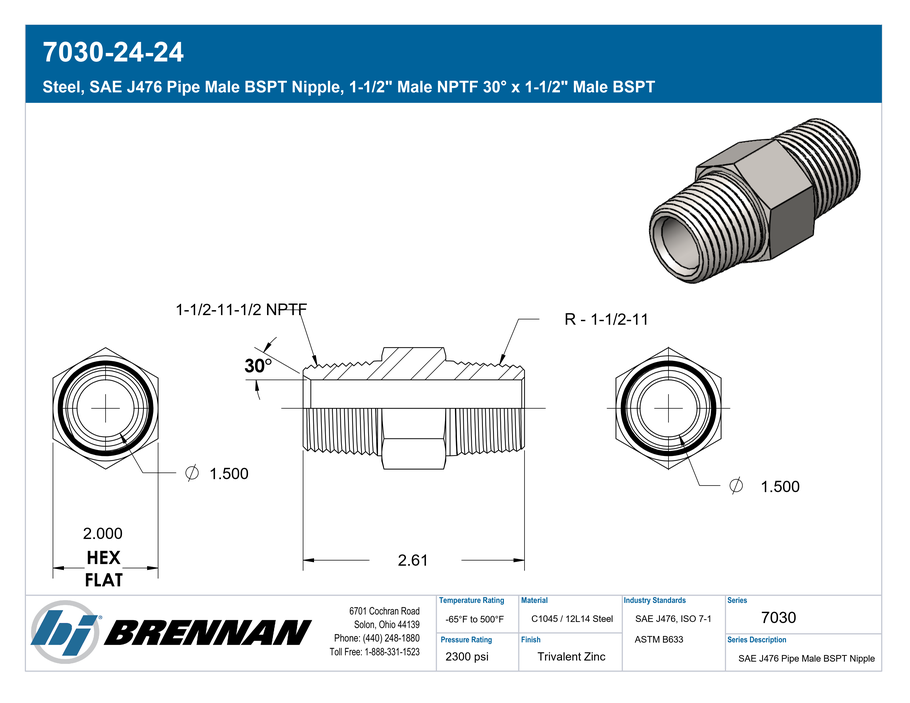

Steel, SAE J476 Pipe Male BSPT Nipple, 1-1/2" Male NPTF 30° x 1-1/2" Male BSPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1-1/2\"","Side 1 Thread Type":"1-1/2-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male BSPT","Side 2 Pipe Size":"1-1/2\"","Side 2 Thread Type":"R - 1-1/2-11","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"2.000","Weight":"0.78 lb"} |
| Performance Specifications | {"Working Pressure":"2300 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"9200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1 1/2 FHF3S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Male BSPT |
| Technical Series Configuration | SAE J476 Male NPTF Pipe x ISO 7-1 Male BSPT Pipe Nipple |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male BSPT |
| Shape | Straight |
| Product Type | Fittings |
