Attributes
| Part Number | 9344-08-08-08-SS |
|---|---|
| Is Series Page | 0 |
Description

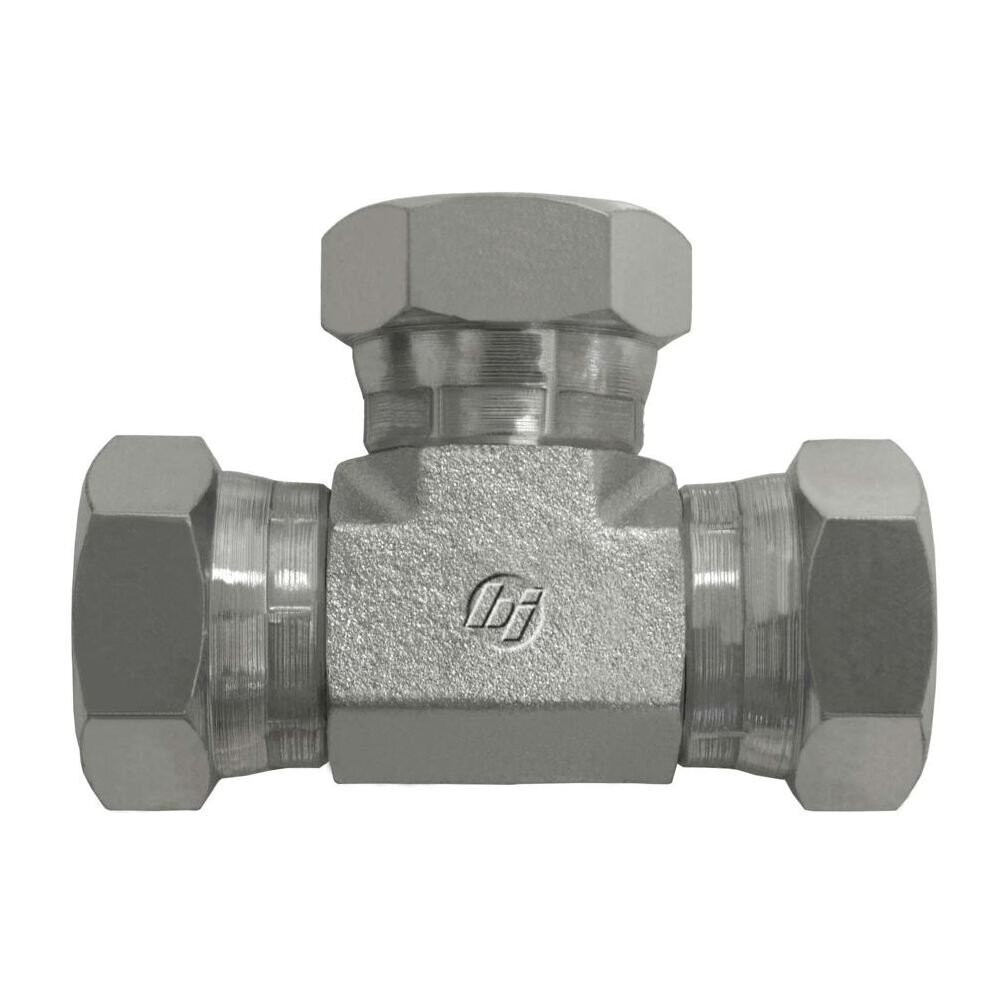

Stainless Steel, ISO 8434-6 60° Cone Female BSPP Swivel Union Tee, 1/2-14 Female BSPP Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Female BSPP Swivel","Side 1 Thread Type":"G - 1/2-14","Side 1 Standard":"ISO 8434-6","Side 1 Role":"Line Connection","Side 2 Connection Type":"Female BSPP Swivel","Side 2 Thread Type":"G - 1/2-14","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection","Side 3 Connection Type":"Female BSPP Swivel","Side 3 Thread Type":"G - 1/2-14","Side 3 Standard":"ISO 8434-6","Side 3 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Swivel Union Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"1.000","Weight":"0.70 lb"} |
| Performance Specifications | {"Working Pressure":"2900 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"11600 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female BSPP Swivel x Female BSPP Swivel x Female BSPP Swivel |
| Technical Series Configuration | ISO 8434-6 Female BSPP Swivel Line x Female BSPP Swivel Line x Female BSPP Swivel Line Union Tee |
| Side 1 Connection Type | Female BSPP Swivel |
| Side 2 Connection Type | Female BSPP Swivel |
| Shape | Tee |
| Product Type | Fittings |
