Attributes
| Part Number | D8801-L12-16-NWO-RR |
|---|---|
| Is Series Page | 0 |
Description

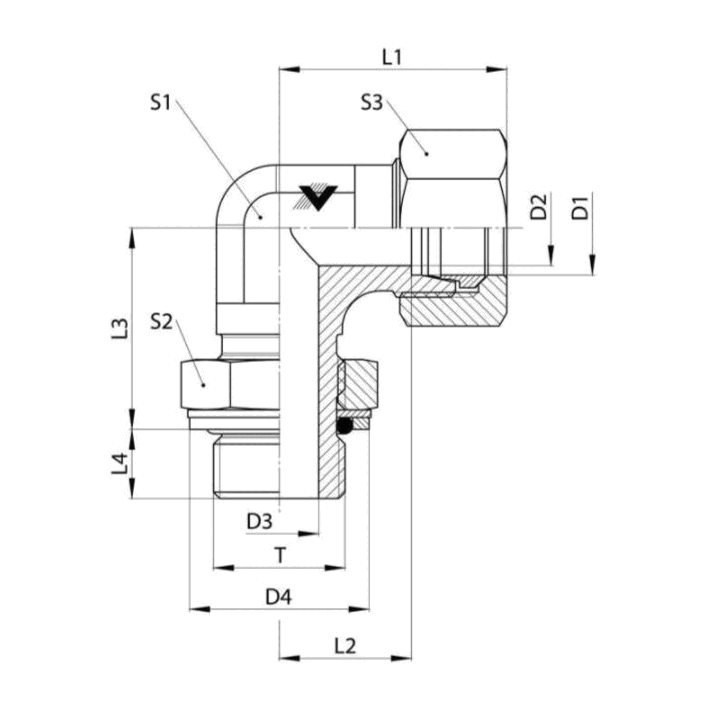

Steel, DIN 2353 90° Adjustable Swivel Elbow, Light 12mm Tube OD x 16mm Metric (Type H)
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Adjustable Elbow","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.14 lb"} |
| Performance Specifications | {"Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227"} |
| Cross References | {"Parker TFD Part Number":"WEE12LMCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube x Male Adjustable Metric ORR |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ISO 9974 Male Adjustable Metric (Type H) Port 90° Elbow |
| Side 1 Connection Type | DIN Tube |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents
No PDF documents.
