Attributes
| Part Number | FS2408-06-SS |
|---|---|
| Is Series Page | 0 |
Description

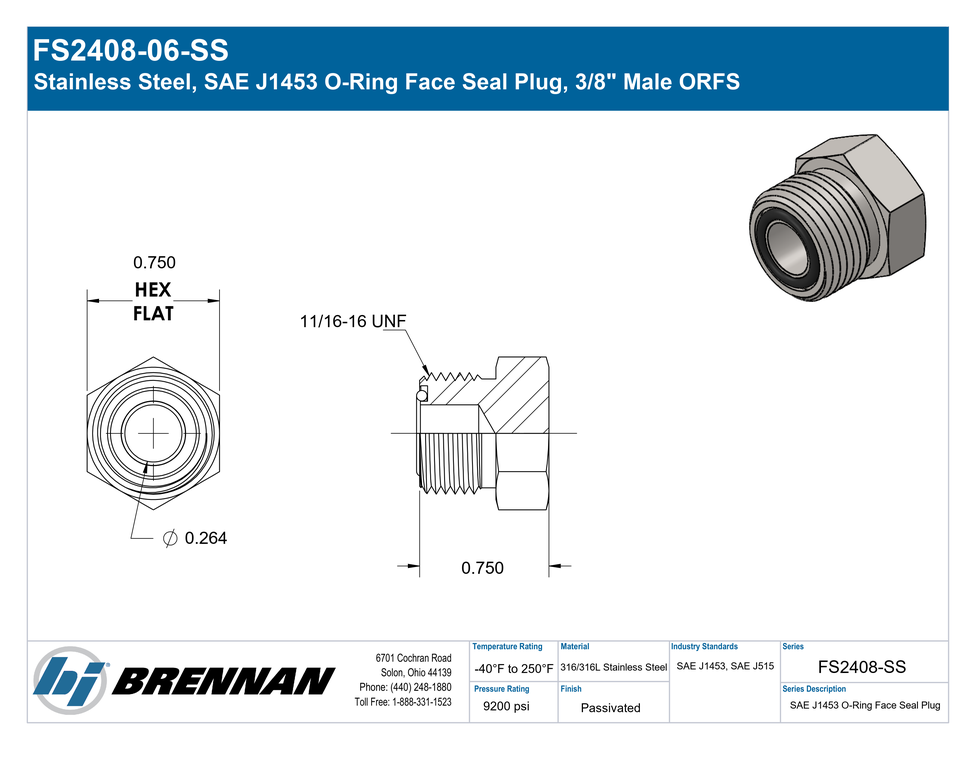

Stainless Steel, SAE J1453 O-Ring Face Seal Plug, 3/8" Male ORFS
Specifications
| Connection Details | {"Connection Type":"Male ORFS","Tube OD":"3/8\"","Thread Type":"11/16-16 UNF","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection","Replacement Seal":"FS4000-06"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"9200 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"36800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-FF9767-06","Parker TFD Part Number":"6 PNLO-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS Plug |
| Technical Series Configuration | SAE J1453 Male ORFS Tube Plug |
| Side 1 Connection Type | Male ORFS |
| Shape | Cap/Plug |
| Product Type | Fittings |
