Attributes
| Part Number | 9650-08-08-08-08-FG |
|---|---|
| Is Series Page | 0 |
Description

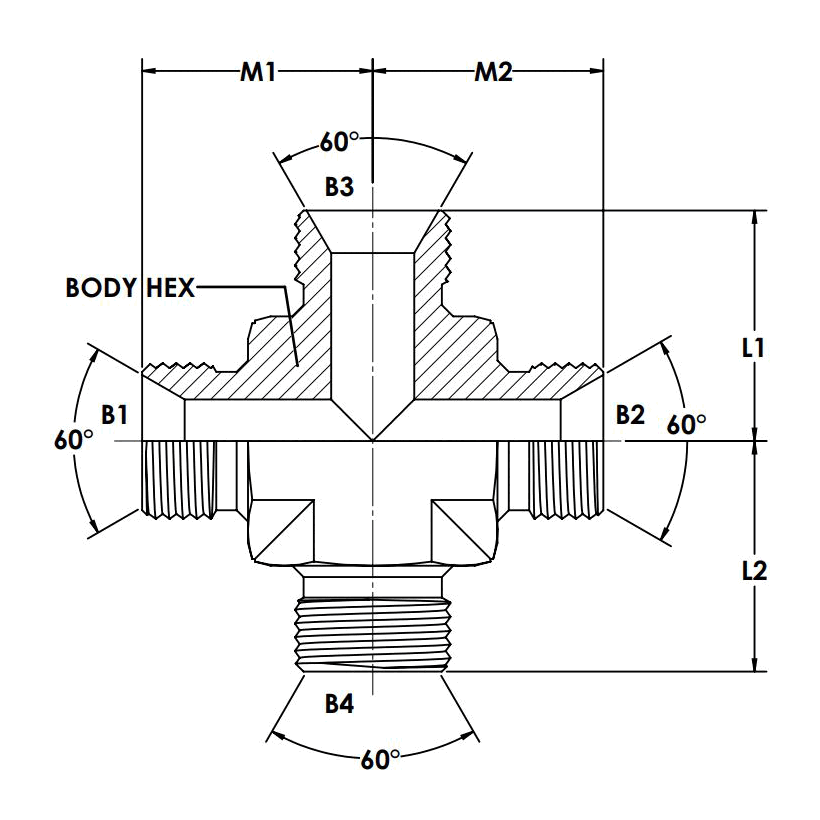

Steel, ISO 8434-6 60° Cone Male BSPP Union Cross, 1/2-14 Male BSPP 60°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male BSPP 60° Line Only","Side 1 Thread Type":"G - 1/2-14","Side 1 Standard":"ISO 8434-6","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPP 60° Line Only","Side 2 Thread Type":"G - 1/2-14","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection","Side 3 Connection Type":"Male BSPP 60° Line Only","Side 3 Thread Type":"G - 1/2-14","Side 3 Standard":"ISO 8434-6","Side 3 Role":"Line Connection","Side 4 Connection Type":"Male BSPP 60° Line Only","Side 4 Thread Type":"G - 1/2-14","Side 4 Standard":"ISO 8434-6","Side 4 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cross","Shape Type":"Union Cross","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.063","Weight":"0.40 lb"} |
| Performance Specifications | {"Working Pressure":"2900 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"11600 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male BSPP x Male BSPP x Male BSPP x Male BSPP |
| Technical Series Configuration | ISO 8434-6 Male BSPP Line x Male BSPP Line x Male BSPP Line x Male BSPP Line Union Cross |
| Side 1 Connection Type | Male BSPP 60° Line Only |
| Side 2 Connection Type | Male BSPP 60° Line Only |
| Shape | Cross |
| Product Type | Fittings |
