Attributes
| Part Number | 1503-08-04-FG |
|---|---|
| Is Series Page | 0 |
Description

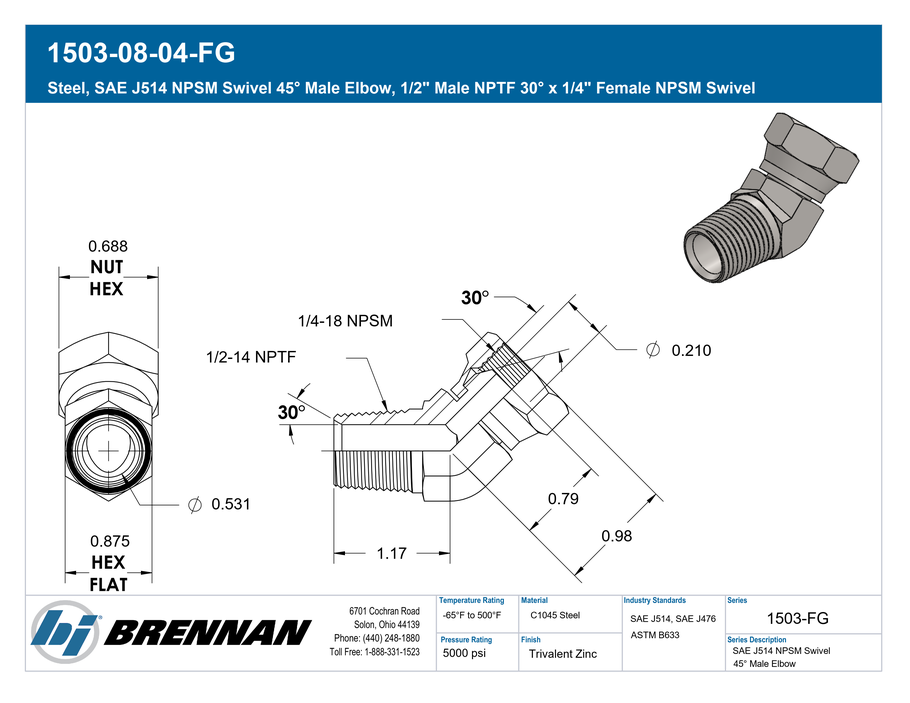

Steel, SAE J514 NPSM Swivel 45° Male Elbow, 1/2" Male NPTF 30° x 1/4" Female NPSM Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/2\"","Side 1 Thread Type":"1/2-14 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Male Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.21 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2049-4-8S","Parker TFD Part Number":"3107-8-4","SAE J514 Part Number":"SAE J514 4-8 140330C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Female Pipe Swivel |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPSM Swivel 45° Elbow |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | 45° Elbow |
| Product Type | Fittings |
