Attributes
| Part Number | FS0304-C-04-SS |
|---|---|
| Is Series Page | 0 |
Description

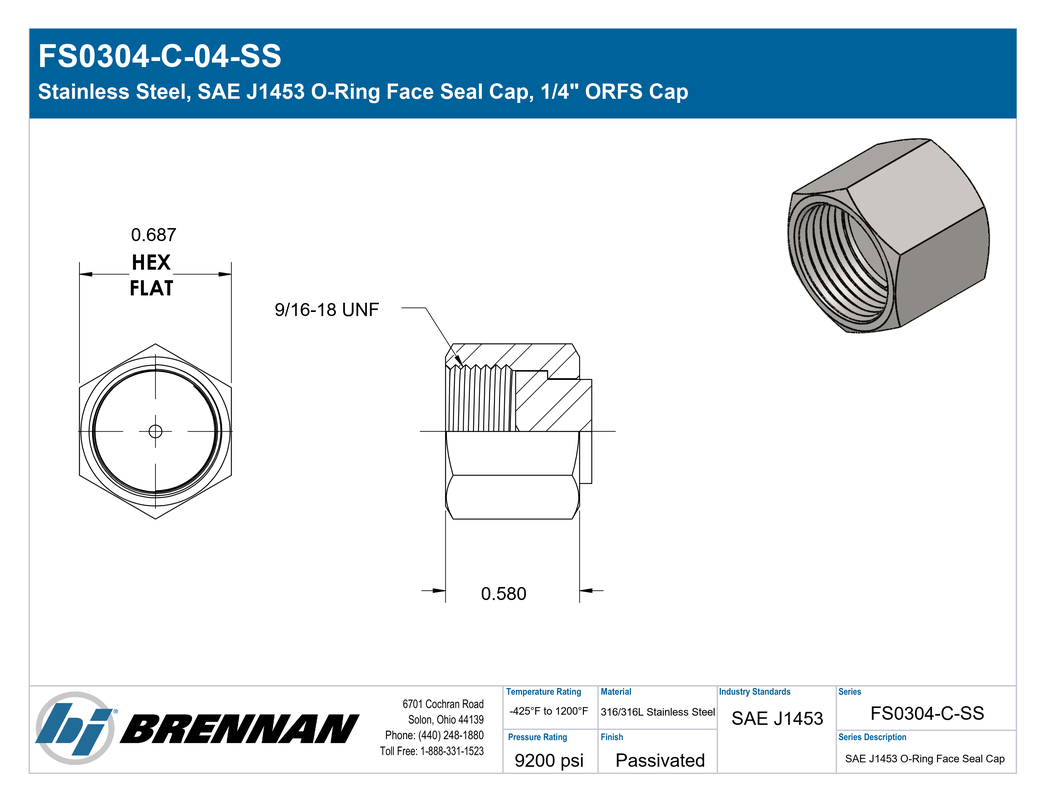

Stainless Steel, SAE J1453 O-Ring Face Seal Cap, 1/4" ORFS Cap
Specifications
| Connection Details | {"Connection Type":"ORFS Cap","Tube OD":"1/4\"","Thread Type":"9/16-18 UNF","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.10 lb"} |
| Performance Specifications | {"Working Pressure":"9200 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"36800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-FF9863-04","Parker TFD Part Number":"4 FNL-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | ORFS Cap |
| Technical Series Configuration | SAE J1453 ORFS Tube Cap |
| Side 1 Connection Type | ORFS Cap |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
