Attributes
| Part Number | C0319-06-B |
|---|---|
| Is Series Page | 0 |
Description

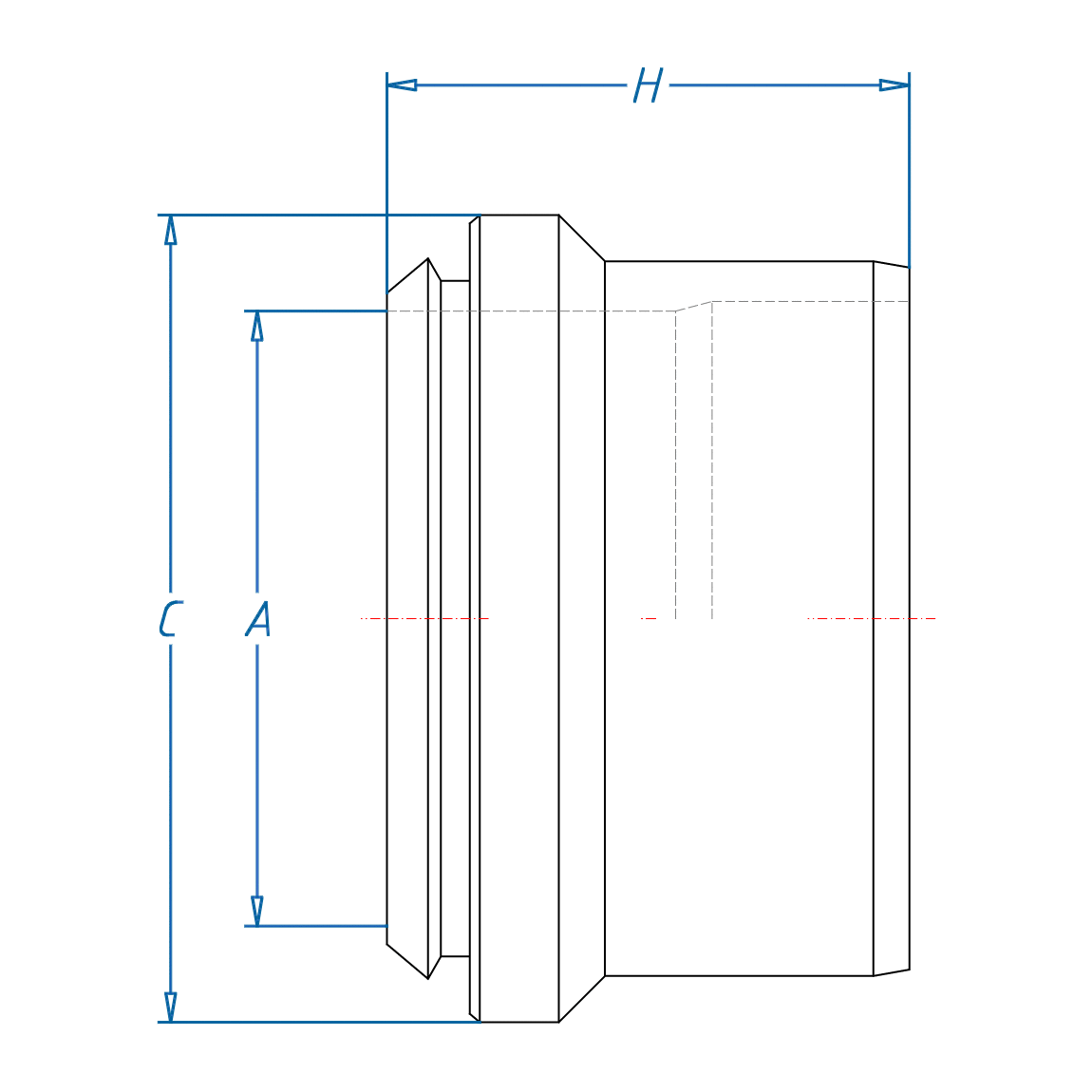

Brass, SAE J514 Flareless Tube Ferrule, 3/8" Flareless Bite Type Sleeve
Specifications
| Connection Details | {"Connection Type":"Flareless Bite Type Sleeve","Tube OD":"3/8\"","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Sleeve","Shape Type":"Ferrule","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.01 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F"} |
| Cross References | {"Parker Hose Part Number":"110-6-B","Parker TFD Part Number":"6 TU-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Flareless Tube Ferrule |
| Technical Series Configuration | SAE J514 Flareless Tube Ferrule, Type A |
| Side 1 Connection Type | Flareless Bite Type Sleeve |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
