Attributes
| Part Number | 6408-04-O-B |
|---|---|
| Is Series Page | 0 |
Description

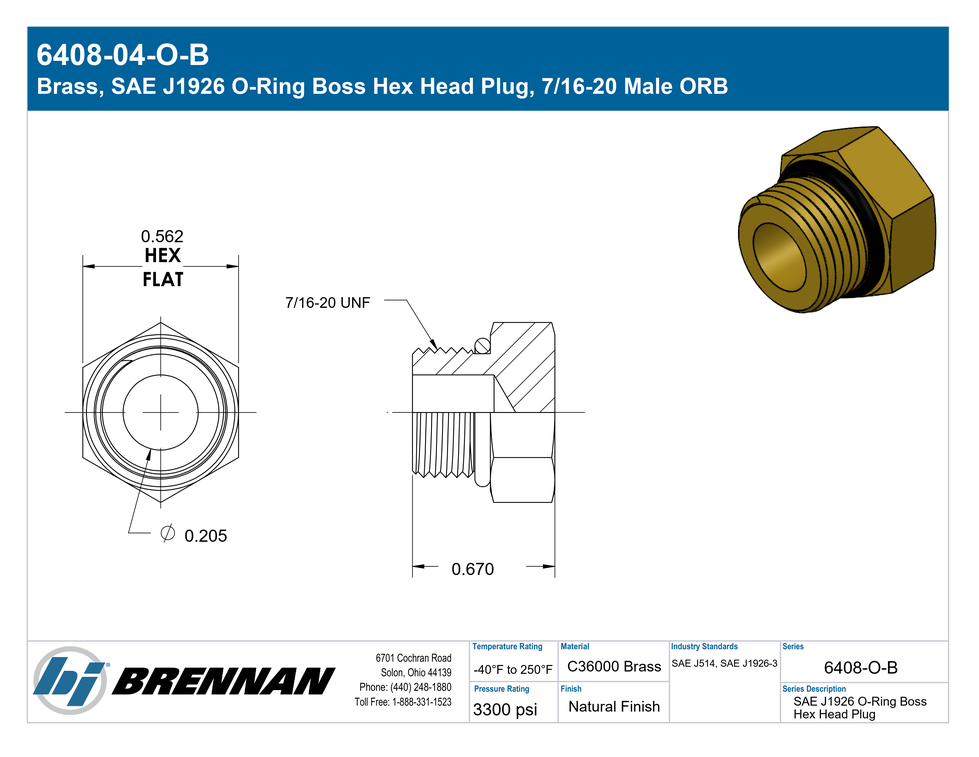

Brass, SAE J1926 O-Ring Boss Hex Head Plug, 7/16-20 Male ORB
Specifications
| Connection Details | {"Connection Type":"Male ORB","Thread Type":"7/16-20 UNF","Standard":"SAE J1926","Connection Standard":"SAE J1926","Role":"Port Connection","Connection Role":"Port Connection","Replacement Seal":"4000-04"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.04 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"4 P5ON-B","SAE J514 Part Number":"SAE J514 4 090109ABN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORB Hex Head Plug |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss Hex Head Plug |
| Side 1 Connection Type | Male ORB |
| Shape | Cap/Plug |
| Product Type | Fittings |
