Attributes
| Part Number | 2602-10-10-04-FG |
|---|---|
| Is Series Page | 0 |
Description

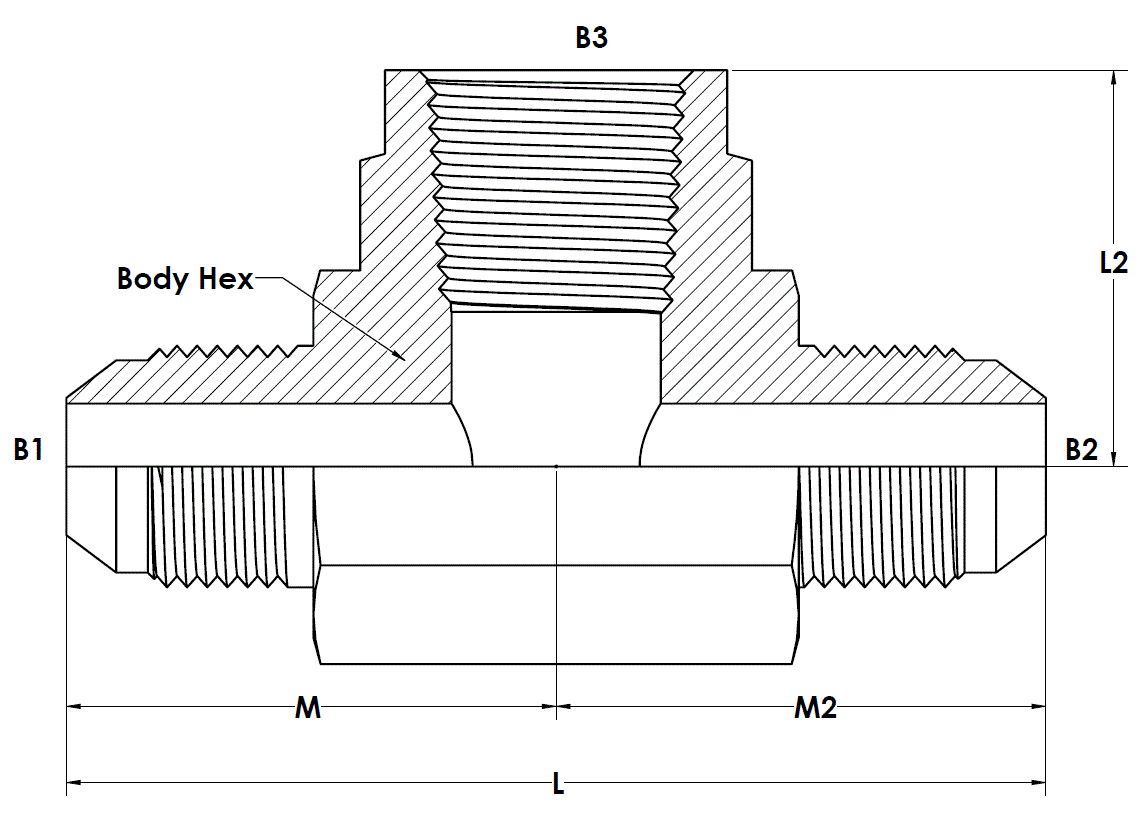

Steel, SAE J514 37° Flare Female Branch Tee, 5/8" Male JIC x 5/8" Male JIC x 1/4" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"5/8\"","Side 2 Thread Type":"7/8-14 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Female NPTF","Side 3 Pipe Size":"1/4\"","Side 3 Thread Type":"1/4-18 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Female Branch Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.875","Weight":"0.46 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2031-4-10S","Parker TFD Part Number":"10-10-4 OTX-S","SAE J514 Part Number":"SAE J514 10-10-4 070427C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC x Female Pipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube x SAE J476 Female NPTF Branch Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Tee |
| Product Type | Fittings |
