Attributes
| Part Number | C0318-20 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 Flareless Tube Nut, 1-1/4" Flareless Bite Type Nut
Specifications
| Connection Details | {"Connection Type":"Flareless Bite Type Nut","Tube OD":"1-1/4\"","Thread Type":"1-5/8-12 UN","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Tube Nut","Primary Material":"Steel","Material Grade":"C1045","Surface Treatment":"Molycoated"} |
| Dimensions | {"Weight":"0.50 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Cross References | {"Aeroquip Part Number":"7105X20","Parker Hose Part Number":"111-20","Parker TFD Part Number":"20 BU-S","SAE J514 Part Number":"SAE J514 20 080110C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Flareless Tube Nut |
| Technical Series Configuration | SAE J514 Flareless Tube Nut |
| Side 1 Connection Type | Flareless Bite Type Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents

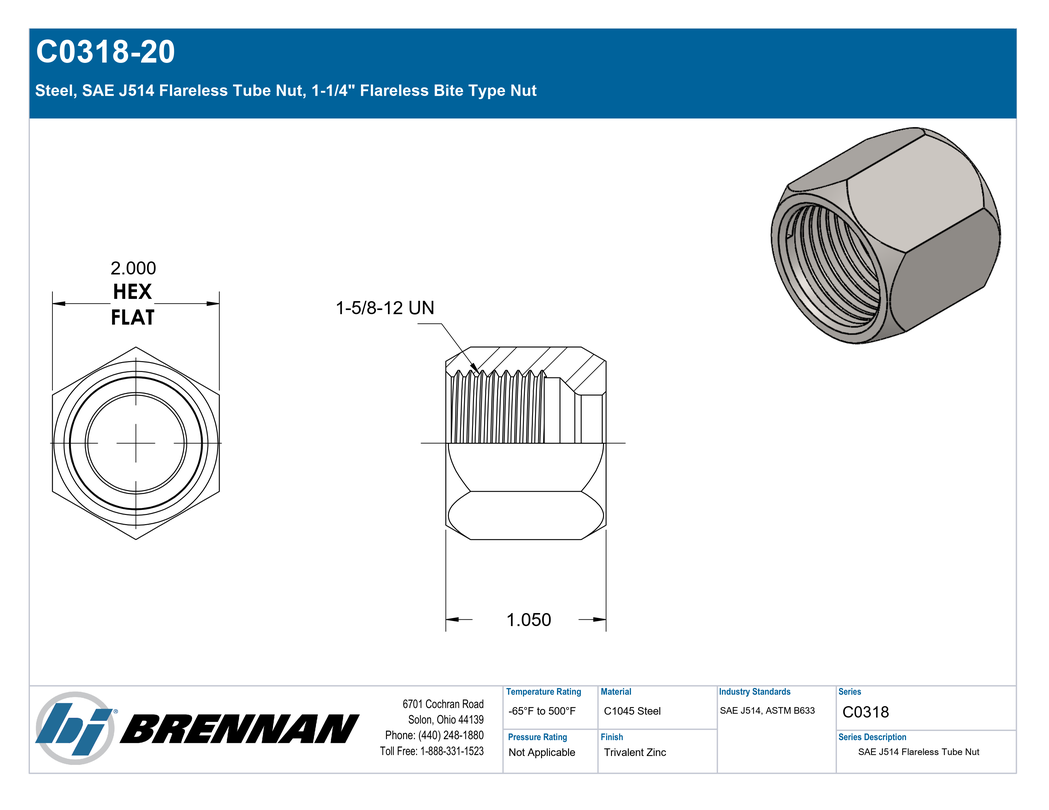

Specification Sheet
Open PDF
