Attributes
| Part Number | FS0318-10-SS |
|---|---|
| Is Series Page | 0 |
Description

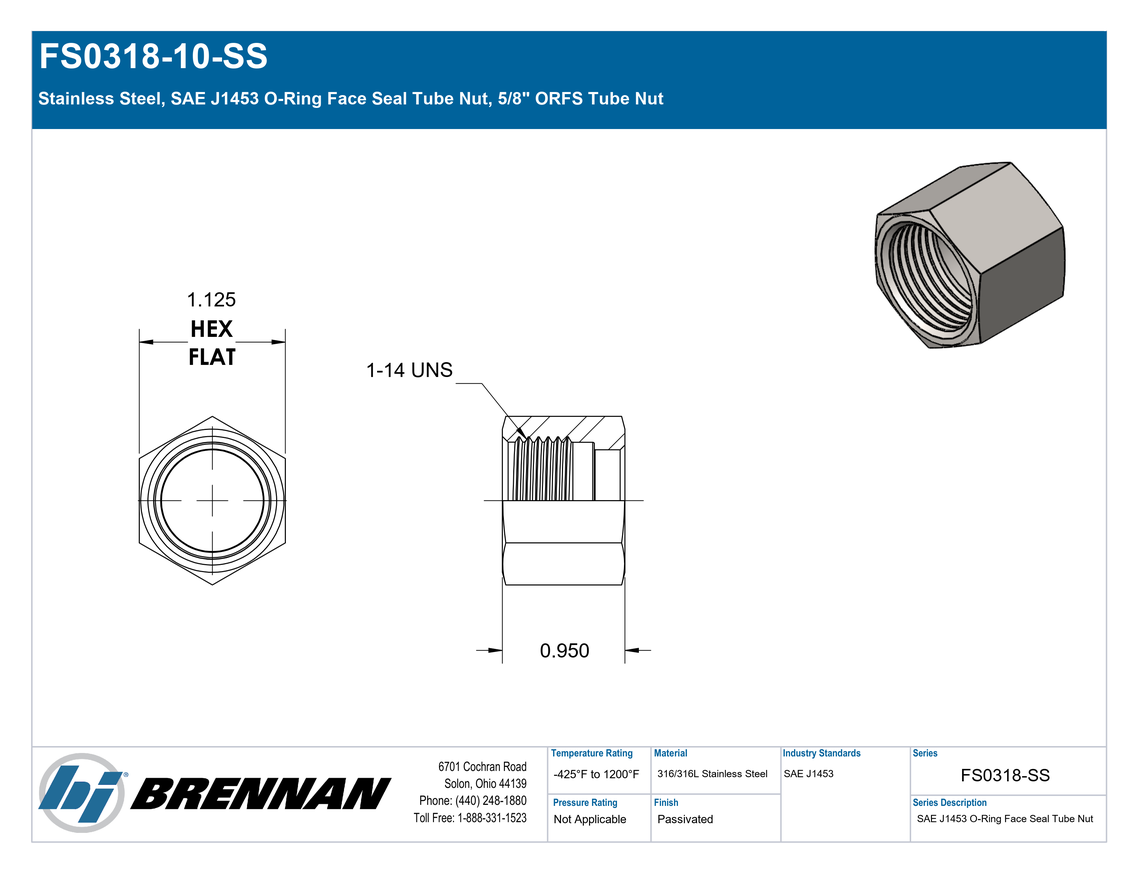

Stainless Steel, SAE J1453 O-Ring Face Seal Tube Nut, 5/8" ORFS Tube Nut
Specifications
| Connection Details | {"Connection Type":"ORFS Tube Nut","Tube OD":"5/8\"","Thread Type":"1-14 UNS","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Tube Nut","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.11 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Aeroquip Part Number":"FC2326-10-259","Parker TFD Part Number":"10 BL-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | ORFS Tube Nut |
| Technical Series Configuration | SAE J1453 ORFS Tube Nut |
| Side 1 Connection Type | ORFS Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
