Attributes
| Part Number | 5406-48-32-SS |
|---|---|
| Is Series Page | 0 |
Description

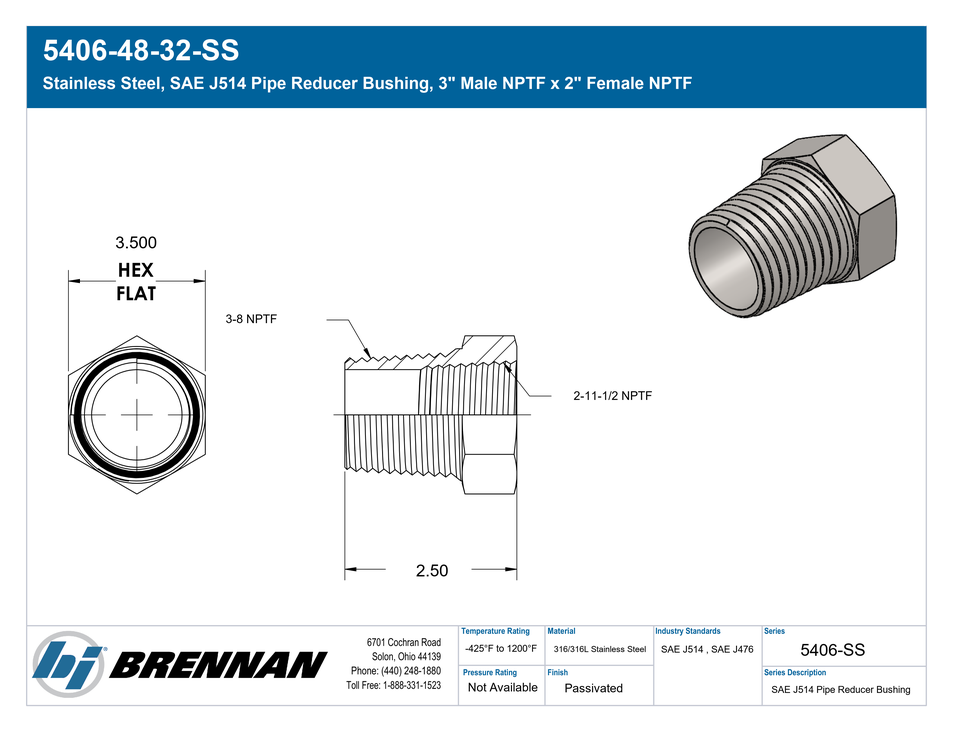

Stainless Steel, SAE J514 Pipe Reducer Bushing, 3" Male NPTF x 2" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF","Side 1 Pipe Size":"3\"","Side 1 Thread Type":"3-8 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"2\"","Side 2 Thread Type":"2-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Reducer Bushing","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"4.22 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Aeroquip Part Number":"259-2081-48-32","Parker TFD Part Number":"3 X 2 PTS-SS","SAE J514 Part Number":"SAE J514 48-32 140140S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF Reducer Coupling |
| Side 1 Connection Type | Male NPTF |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
