Attributes
| Part Number | 6900-08-08-O-VITON |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 NPSM Swivel Port Connector, 3/4-16 Male ORB x 1/2" Female NPSM Swivel, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4001-08","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.14 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"0507-8-8 FKM","SAE J514 Part Number":"SAE J514 8-8 140157CF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORB x Female Pipe Swivel |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x SAE J476 Female NPSM Swivel Connector |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

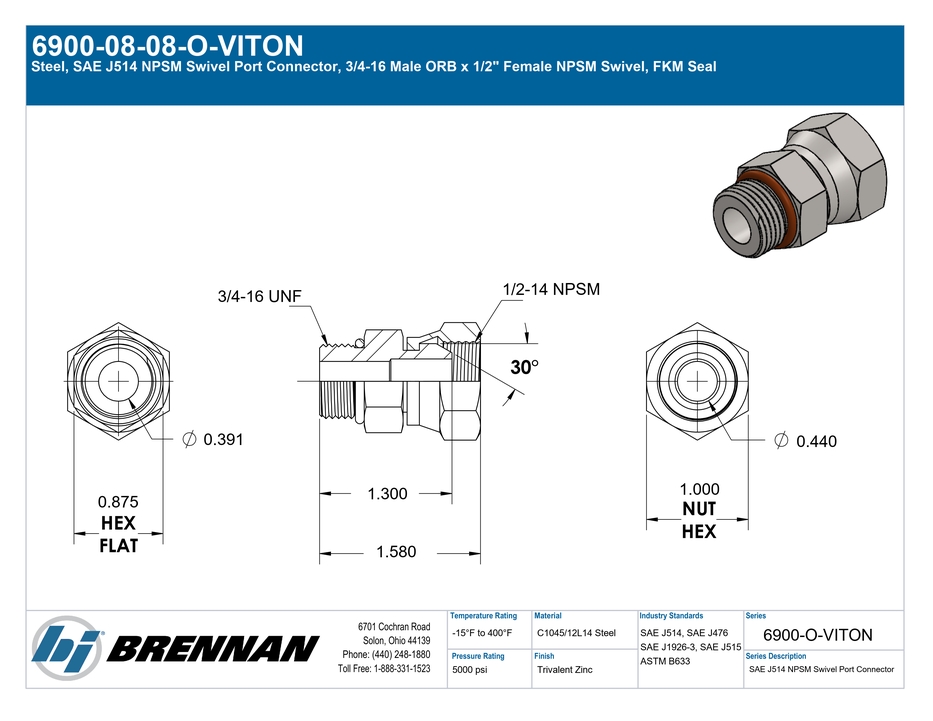

Specification Sheet
