Attributes
| Part Number | 7038-16-04 |
|---|---|
| Is Series Page | 0 |
Description

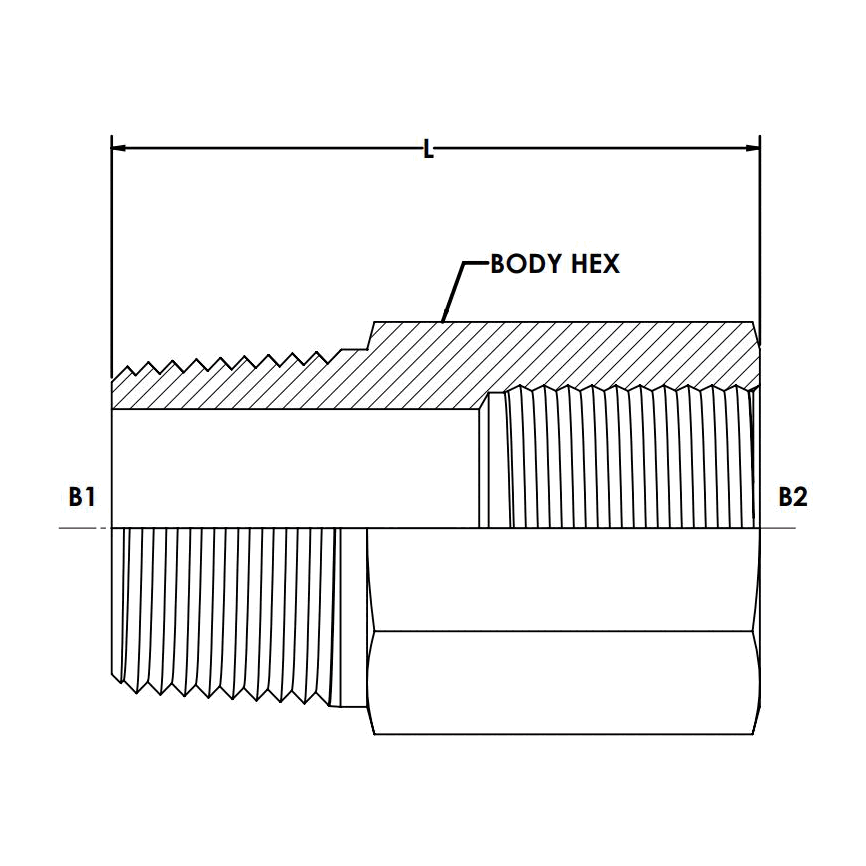

Steel, ISO 7-1 (Type R) Pipe Female BSPP Port Adapter, 1" Male BSPT 30° x 1/4-19 Female BSPP
Specifications
| Connection Details | {"Side 1 Connection Type":"Male BSPT 30°","Side 1 Thread Type":"R - 1-11","Side 1 Standard":"ISO 7-1","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female BSPP","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.375","Weight":"0.28 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male BSPT x Female BSPP |
| Technical Series Configuration | ISO 7-1 Male BSPT Pipe x ISO 1179 Female BSPP Port Adapter |
| Side 1 Connection Type | Male BSPT 30° |
| Side 2 Connection Type | Female BSPP |
| Shape | Straight |
| Product Type | Fittings |
