Attributes
| Part Number | C2700-16-16 |
|---|---|
| Is Series Page | 0 |
Description

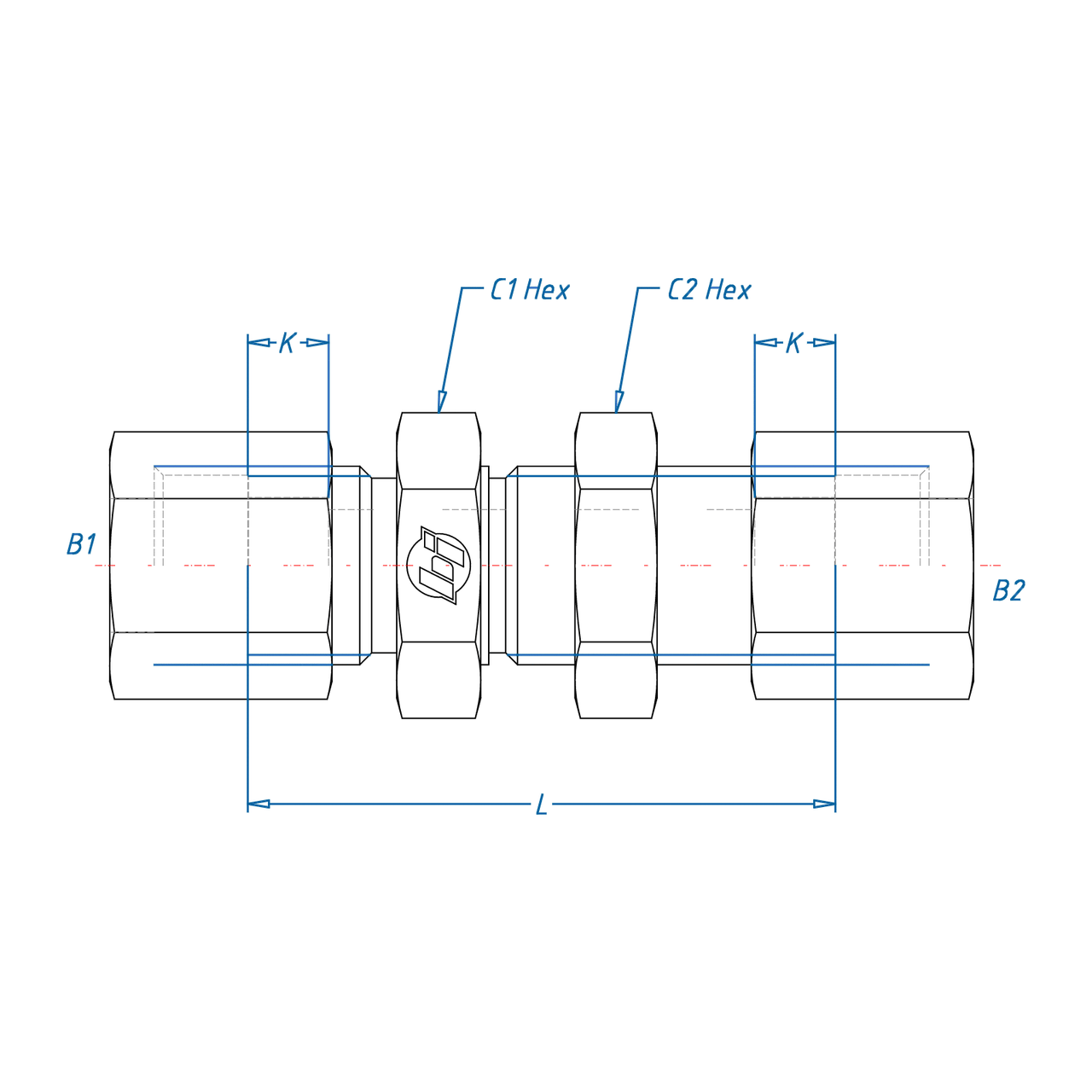

Steel, SAE J514 Flareless Tube Bulkhead Union, 1" Flareless Bite Type x 1" Flareless Bite Type
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Flareless Bite Type","Side 2 Tube OD":"1\"","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J514","Side 2 Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Bulkhead Union","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead"} |
| Dimensions | {"Weight":"1.11 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"7325X16","Parker TFD Part Number":"16 WBU-S","SAE J514 Part Number":"SAE J514 16-16 08A0601C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Flareless Compression x Flareless Compression Bulkhead |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x Flareless Compression Bulkhead Tube Union |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Flareless Bite Type |
| Shape | Straight |
| Product Type | Fittings |
