Attributes
| Part Number | C2402-08-12-SS |
|---|---|
| Is Series Page | 0 |
Description

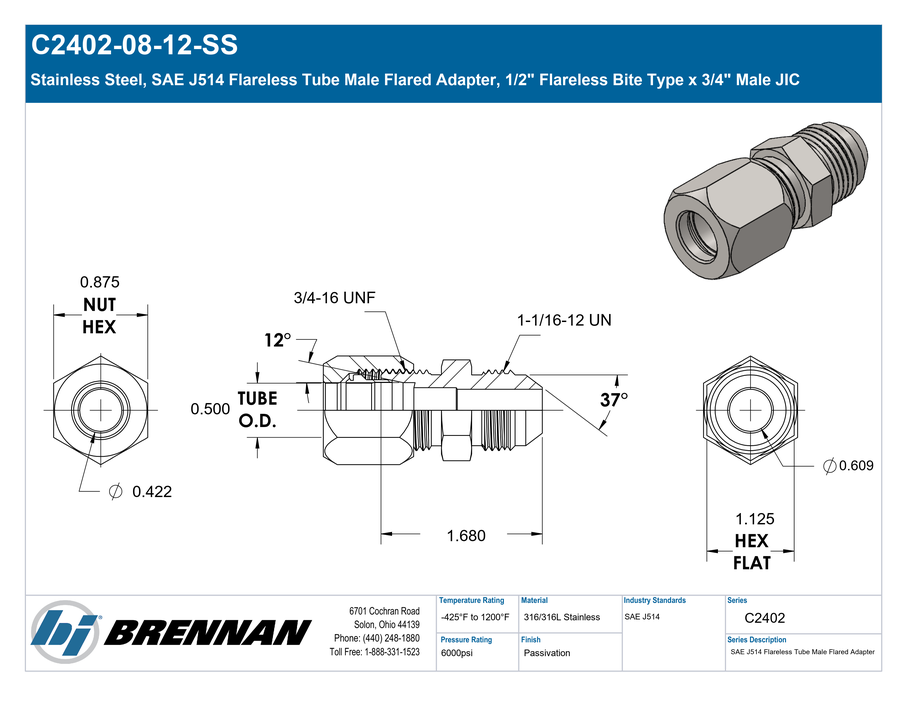

Stainless Steel, SAE J514 Flareless Tube Male Flared Adapter, 1/2" Flareless Bite Type x 3/4" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/4\"","Side 2 Thread Type":"1-1/16-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.28 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-FF1316-0812","Parker TFD Part Number":"12-8 XHBU-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Flareless Compression x Male JIC |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x Male JIC Tube Adapter |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
