Attributes
| Part Number | FS6809-24-24-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J1453 O-Ring Face Seal Swivel 90° Adjustable Port Elbow, 1-1/2" Female ORFS Swivel x 1-7/8-12 Male Adjustable ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Female ORFS Swivel","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"2-12 UNF","Side 1 Standard":"SAE J1453","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-24"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Adjustable Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"2.60 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"24 AOEL6-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Adjustable ORB x Female ORFS Swivel |
| Technical Series Configuration | SAE J1926-2 Male Adjustable O-Ring Boss x SAE J1453 Female ORFS Swivel Tube 90° Elbow |
| Side 1 Connection Type | Female ORFS Swivel |
| Side 2 Connection Type | Male Adjustable ORB |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents

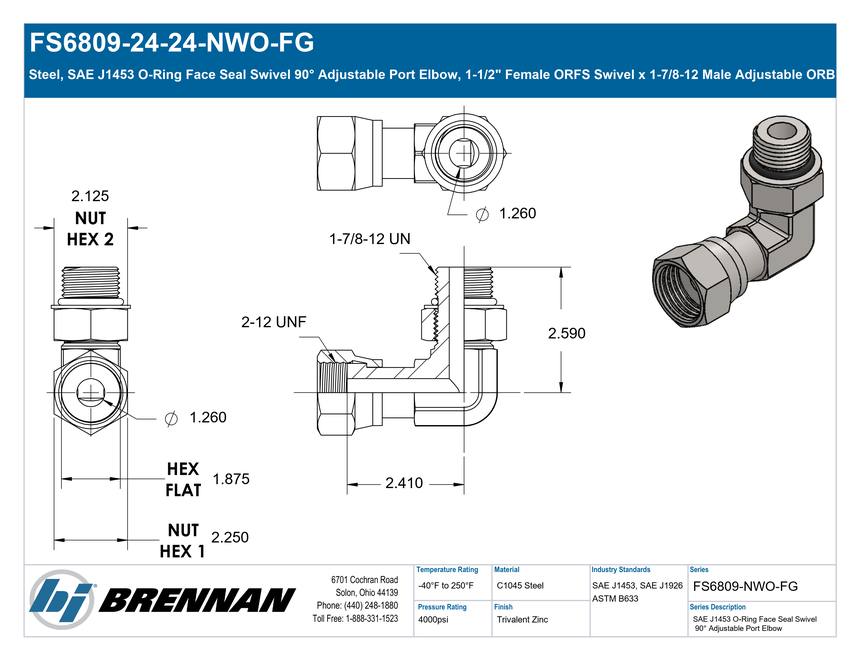

Specification Sheet
