Attributes
| Part Number | 7640-04-10-O-VITON |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Male Metric (ISO 6149) Port Connector, 1/4" Male JIC x M10X1.0 Male Metric ORB, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Metric ORB","Side 2 Thread Type":"M10X1.0","Side 2 Standard":"ISO 6149","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"8900-10-VITON"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Hex/Wrench":"0.551","Weight":"0.04 lb"} |
| Performance Specifications | {"Working Pressure":"7200 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"28800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"4M10F87OMXS FKM"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male Metric O-Ring Boss |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 6149 Male Metric O-Ring Boss Port Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male Metric ORB |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

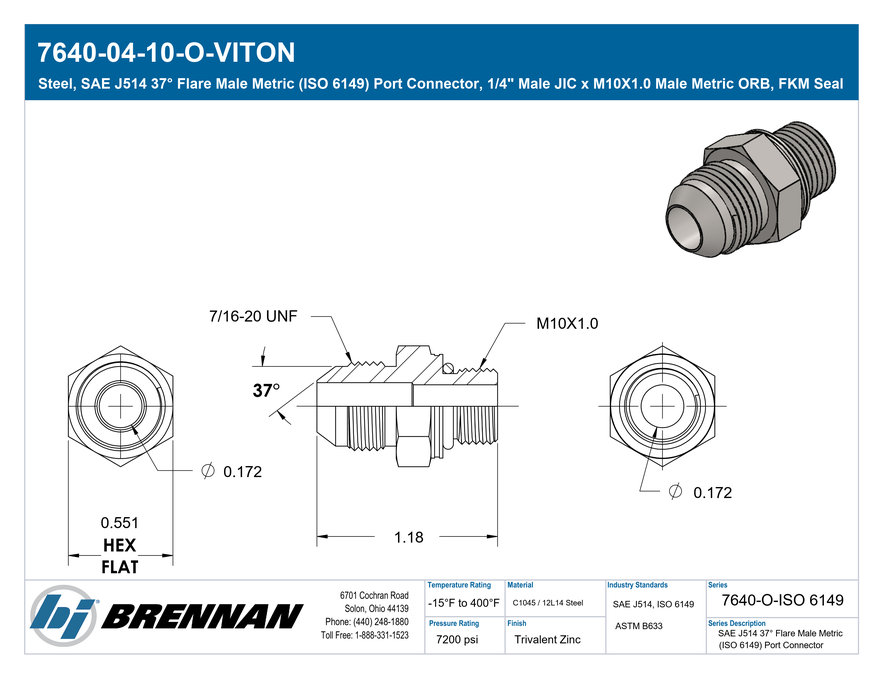

Specification Sheet
