Attributes
| Part Number | 6405-06-04-O-SS-VITON |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J1926 O-Ring Boss Female Adapter, 9/16-18 Male ORB x 1/4" Female NPTF, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4001-06","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"213-259-2216-4-6","Parker TFD Part Number":"6-1/4 F5OG-SS FKM"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORB x Female Pipe |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x SAE J476 Female NPTF Adapter |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

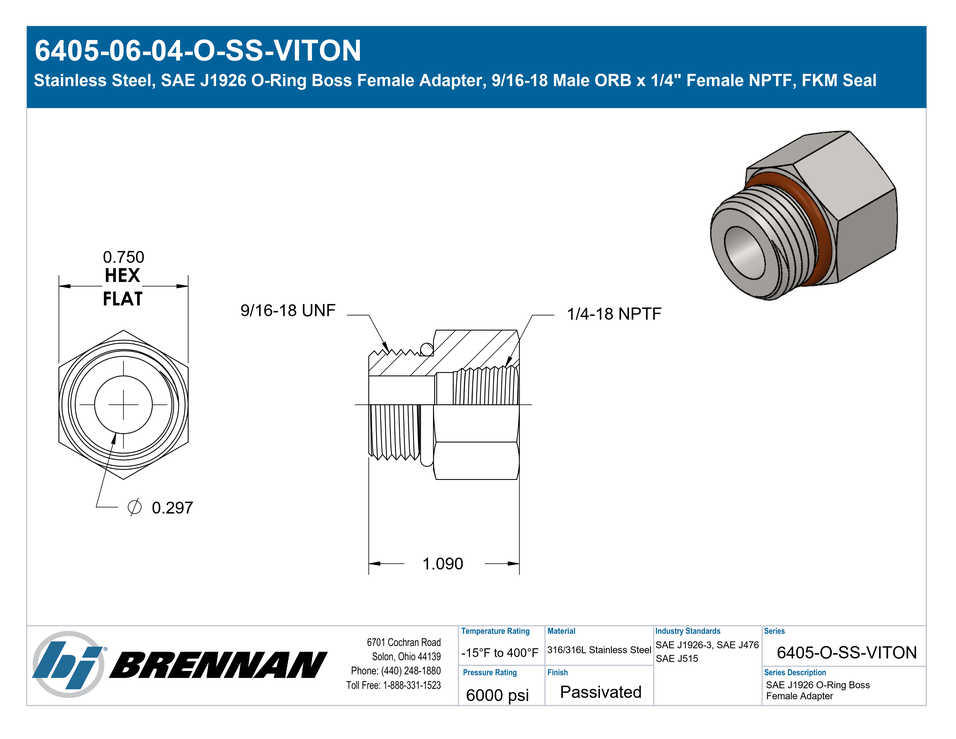

Specification Sheet
Open PDF
