Attributes
| Part Number | 6408-12-O |
|---|---|
| Is Series Page | 0 |
Description

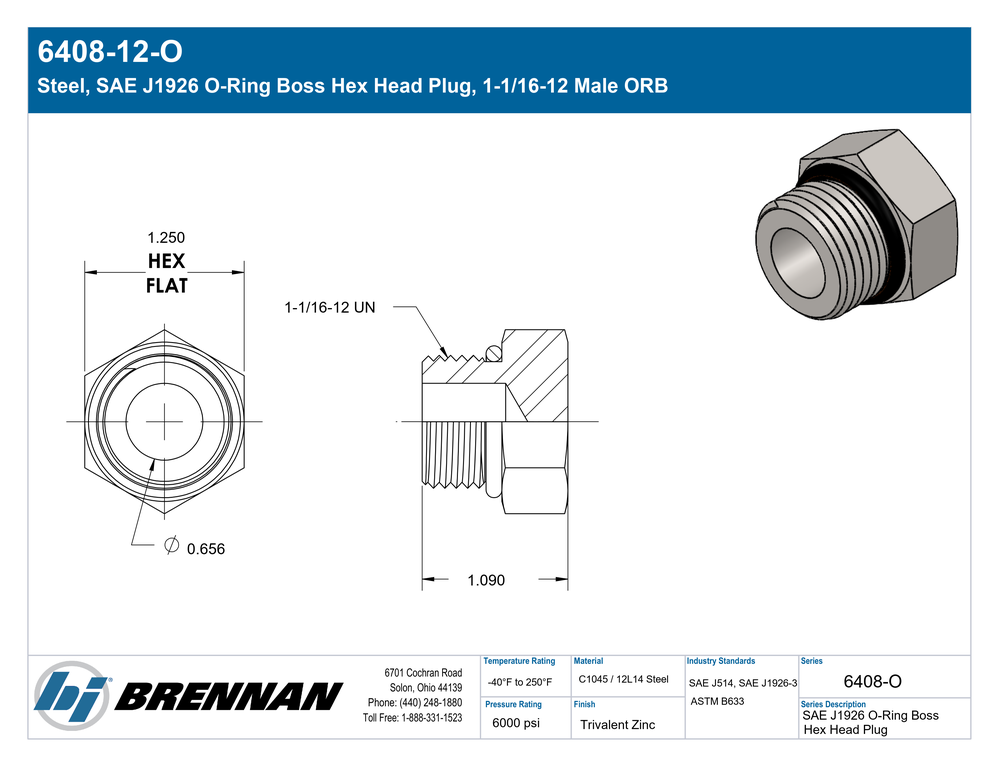

Steel, SAE J1926 O-Ring Boss Hex Head Plug, 1-1/16-12 Male ORB
Specifications
| Connection Details | {"Connection Type":"Male ORB","Thread Type":"1-1/16-12 UN","Standard":"SAE J1926","Connection Standard":"SAE J1926","Role":"Port Connection","Connection Role":"Port Connection","Replacement Seal":"4000-12"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.25 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"900598-12S","Parker Hose Part Number":"05CP-12","Parker TFD Part Number":"12 P5ON-S","SAE J514 Part Number":"SAE J514 12 090109ACN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORB Hex Head Plug |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss Hex Head Plug |
| Side 1 Connection Type | Male ORB |
| Shape | Cap/Plug |
| Product Type | Fittings |
