Attributes
| Part Number | 1967-61-20-20 |
|---|---|
| Is Series Page | 0 |
Description

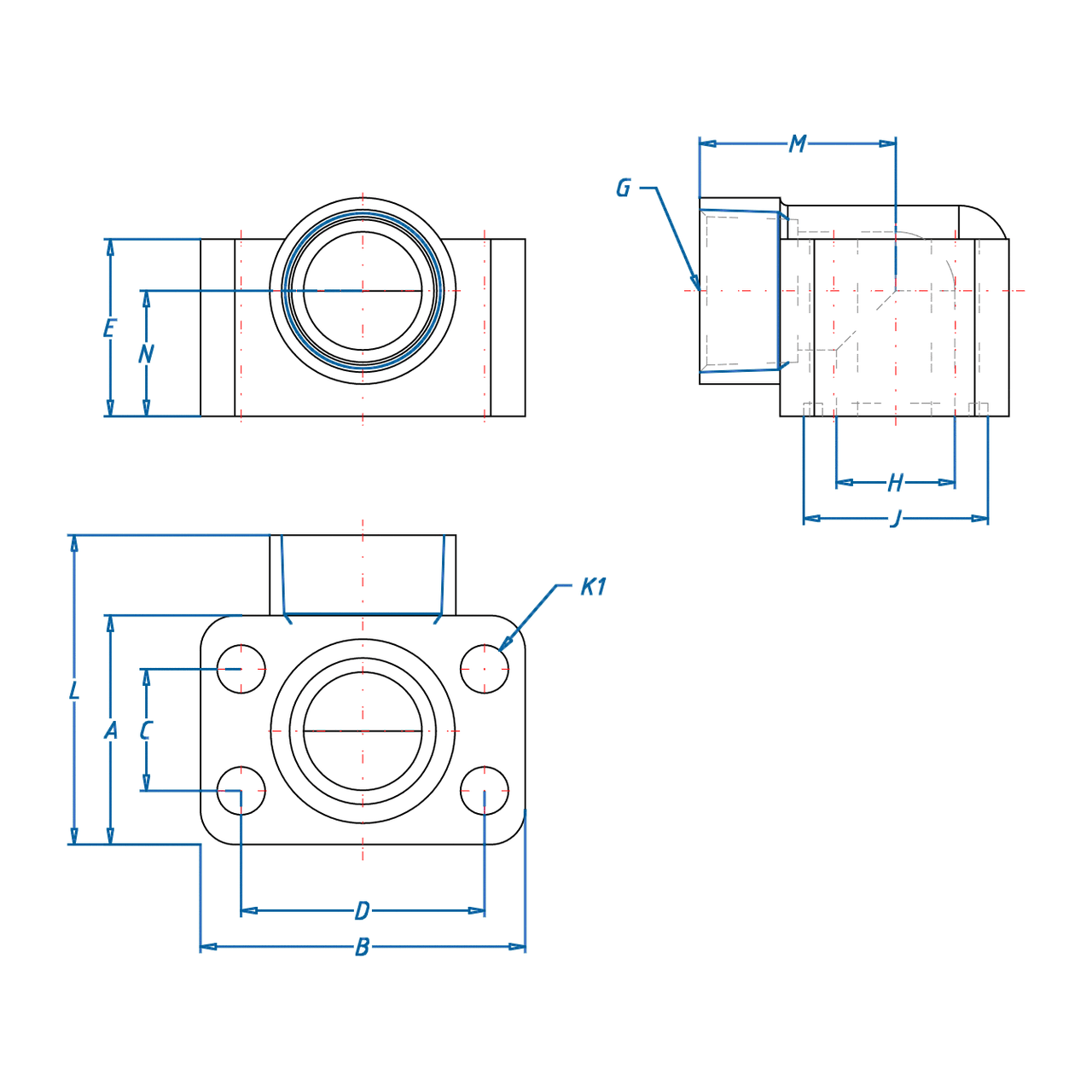

Steel, NPTF 4-Bolt Flange Elbow Code 61 O-Ring Face, 1-1/4" Female NPTF x 1-1/4" Pad Size
Specifications
| Connection Details | {"Connection End Type":"Female NPTF","Connection End Pipe Size":"1-1/4\"","Connection End Thread":"1-1/4-11-1/2 NPTF","Connection End Standard":"SAE J476 - ANSI B1.20.3","Connection End Role":"Pipe Connection","Flange Interface Sealing Type":"O-Ring Face","Flange Interface Code":"Code 61","Flange Interface Pad Size":"1-1/4\""} |
|---|---|
| Body & Materials | {"Primary Material":"Steel","Material Grade":"C1020 steel","Weight":"2.934 lb"} |
| Performance Specifications | {"Working Pressure":"2700 psi","Temperature Range":"-65°F to 500°F","Burst Pressure":"10800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"20GEQ1BSX"} |
| Series Configuration | Female Pipe x O-Ring Face Code 61 Flange |
| Technical Series Configuration | SAE J476 Female NPTF x SAE J518 Code 61 O-Ring Face Flange |
| Side 1 Connection Type | Female NPTF |
PDF Documents
No PDF documents.
