Attributes
| Part Number | 7000-05-02 |
|---|---|
| Is Series Page | 0 |
Description

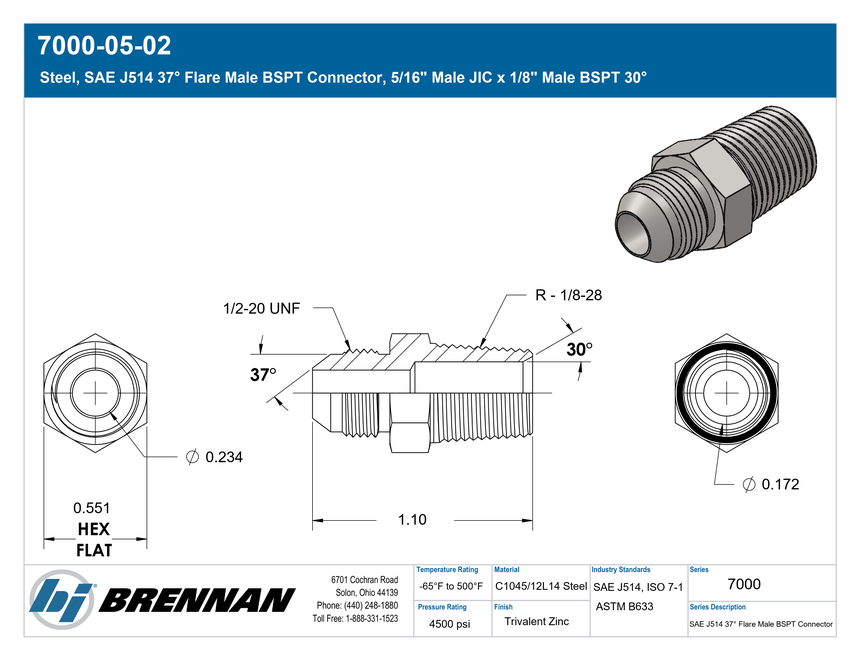

Steel, SAE J514 37° Flare Male BSPT Connector, 5/16" Male JIC x 1/8" Male BSPT 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"R - 1/8-28","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.551","Weight":"0.04 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"GG110-NP05-02","Parker TFD Part Number":"5F3MXS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male BSPT |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 7-1 Male BSPT Port |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPT 30° |
| Shape | Straight |
| Product Type | Fittings |
