Attributes
| Part Number | 0306-12 |
|---|---|
| Is Series Page | 0 |
Description

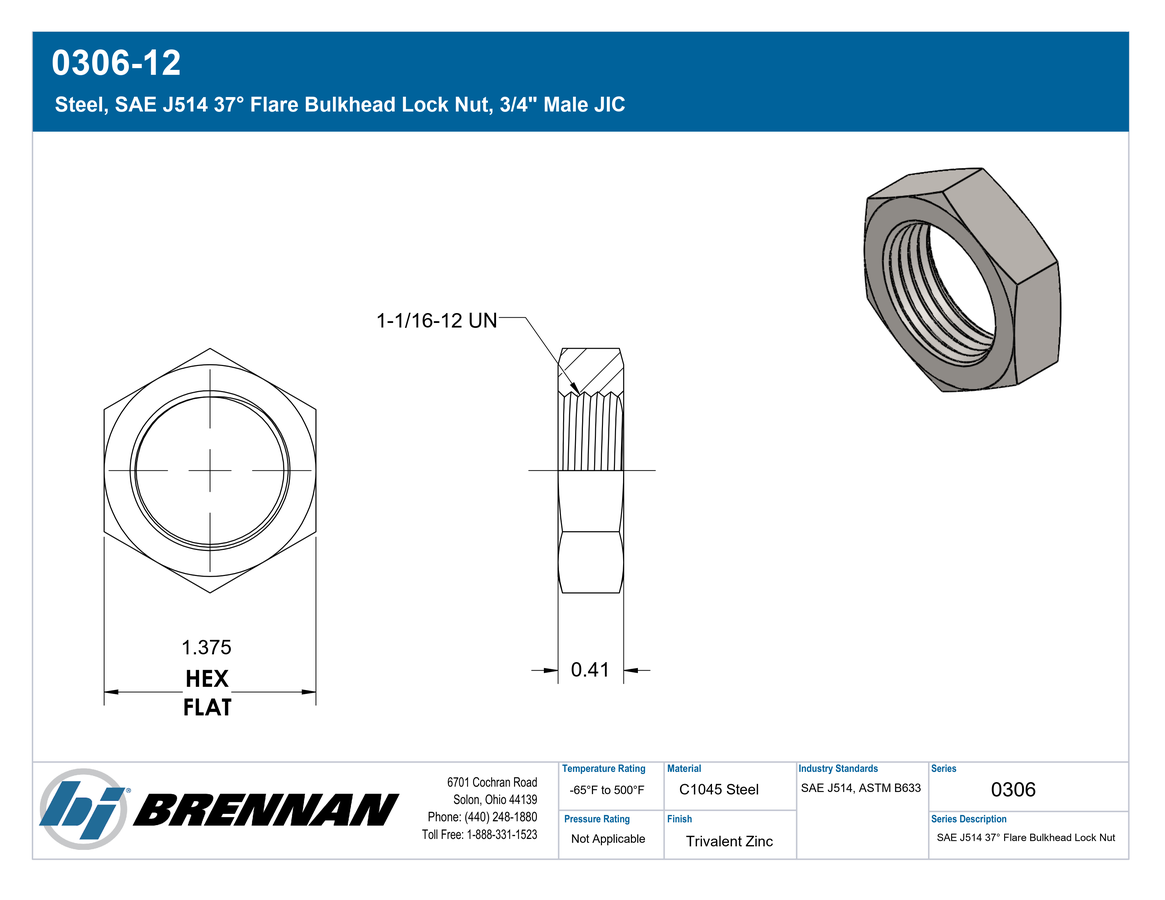

Steel, SAE J514 37° Flare Bulkhead Lock Nut, 3/4" Male JIC
Specifications
| Connection Details | {"Connection Type":"JIC Locknut","Tube OD":"3/4\"","Thread Type":"1-1/16-12 UN","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Lock Nut","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.09 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Cross References | {"Aeroquip Part Number":"210212-12S","Parker Hose Part Number":"53-12N","Parker TFD Part Number":"12 WLN-S","SAE J514 Part Number":"SAE J514 12 070118C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | JIC Bulkhead Lock Nut |
| Technical Series Configuration | SAE J514 Female UN/UNF Bulkhead Lock Nut |
| Side 1 Connection Type | JIC Locknut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
