Attributes
| Part Number | D8405-S12-18-X |
|---|---|
| Is Series Page | 0 |
Description

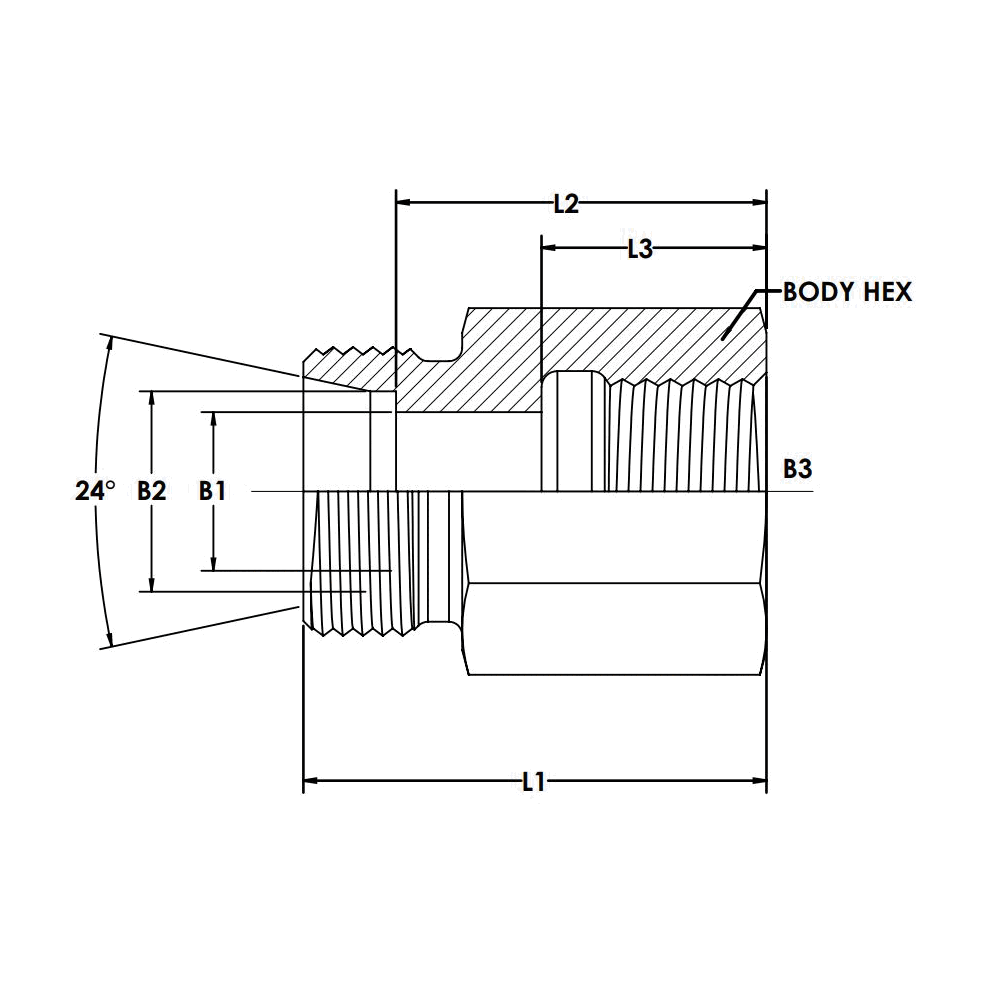

Steel, DIN 2353 Female Connector, Heavy 12mm Male DIN x 18mm Metric (ISO 9974), Body Only
Specifications
| Connection Details | {"Side 1 Connection Type":"Male DIN","Side 1 Tube OD":"12mm","Side 1 Thread Type":"M20X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Line/Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"Female Metric","Side 2 Thread Type":"M18X1.5","Side 2 Standard":"ISO 9974-1","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Connector","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Hex/Wrench":"24mm","Weight":"0.17 lb"} |
| Performance Specifications | {"Working Pressure":"5802 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"23208 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GAI12SMCFX"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male DIN x Female Metric, Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ISO 9974-1 Female Metric Port Connector, Body Only |
| Side 1 Connection Type | Male DIN |
| Side 2 Connection Type | Female Metric |
| Shape | Straight |
| Product Type | Fittings |
