Attributes
| Part Number | FS2408-10-VITON |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J1453 O-Ring Face Seal Plug, 5/8" Male ORFS, FKM Seal
Specifications
| Connection Details | {"Connection Type":"Male ORFS","Tube OD":"5/8\"","Thread Type":"1-14 UNS","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection","Replacement Seal":"FS4001-10"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.18 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF9767T10-213","Parker TFD Part Number":"10 PNLO-S FKM"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORFS Plug |
| Technical Series Configuration | SAE J1453 Male ORFS Tube Plug |
| Side 1 Connection Type | Male ORFS |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents

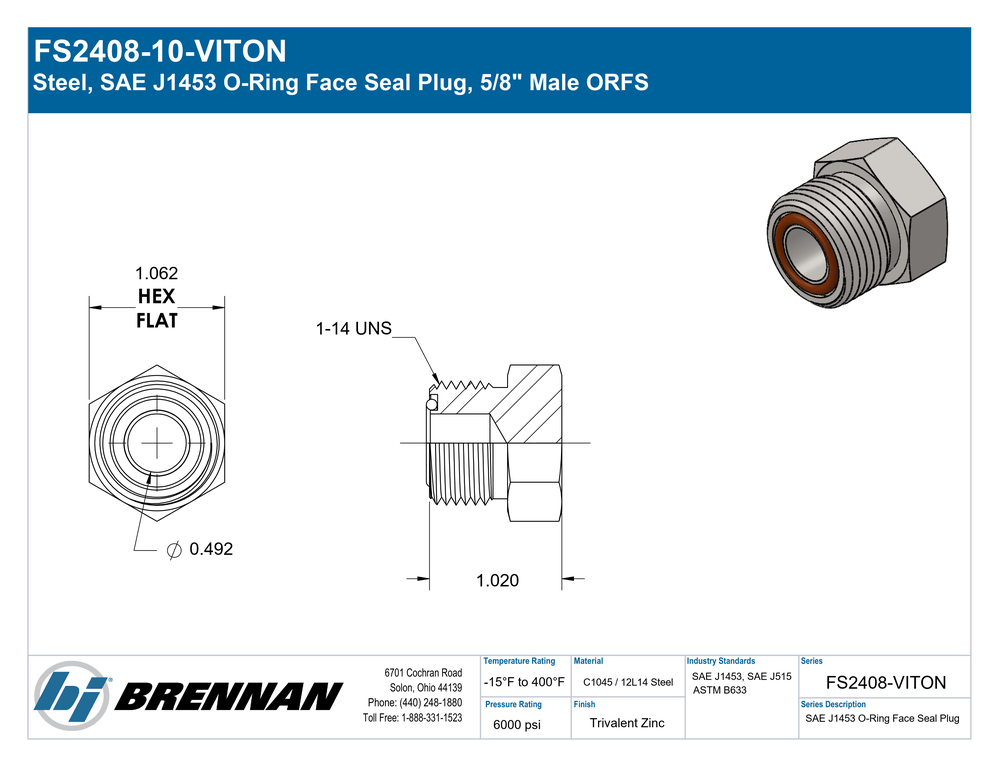

Specification Sheet
